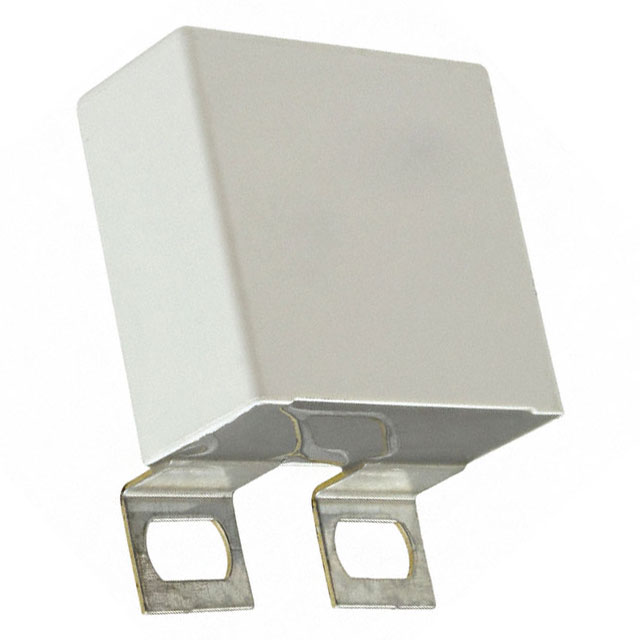

Specification	C4BSWBX3100ZAFJ

Applications	Snubber, DC Filtering, DC Link
Capacitance	0.1 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	23.3 mOhm
Height - Seated (Max)	1.575 in
Lead Spacing	1.004 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Rectangular Box
Size / Dimension Length	1.634 in
Size / Dimension Width	0.787 in
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	700 V
Voltage Rating - DC	2 kVDC

C4BSWB Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Voltage Rating - DC	Lead Spacing	Dielectric Material	Tolerance	Package / Case	ESR (Equivalent Series Resistance)	Mounting Type	Applications	Voltage Rating - AC	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Capacitance
KEMET C4BSWBX3470ZB0J	-40 °C	85 °C	Screw Terminals	2 kVDC	0.866 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	5.1 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.47 µF
KEMET C4BSWBX3470ZBFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	0.866 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	5.1 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.47 µF
KEMET C4BSWBX3100ZAFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	1.004 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	23.3 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.1 µF
KEMET C4BSWBX3220ZAFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	1.004 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	10.7 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.22 µF
KEMET C4BSWBX3470ZGFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	0.866 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	5.1 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.47 µF
KEMET C4BSWBX3470ZAFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	1.004 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	5.1 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.47 µF
KEMET C4BSWBX3220ZA0J	-40 °C	85 °C	Screw Terminals	2 kVDC		Metallized Polypropylene (PP)	5 %	Rectangular Box		Chassis Mount	DC Filtering DC Link Snubber					0.22 µF
KEMET C4BSWBX4150ZANJ	-40 °C	85 °C	Screw Terminals	2 kVDC	1.614 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	3.5 Ohm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.969 in	1.378 in	2.264 in	1.5 µF
KEMET C4BSWBX3100ZMFJ	-40 °C	85 °C	Screw Terminals	2 kVDC		Metallized Polypropylene (PP)	5 %	Rectangular Box		Chassis Mount	DC Filtering DC Link Snubber					0.1 µF
KEMET C4BSWBX3330ZAFJ	-40 °C	85 °C	Screw Terminals	2 kVDC	1.004 in	Metallized Polypropylene (PP)	5 %	Rectangular Box	7.2 mOhm	Chassis Mount	DC Filtering DC Link Snubber	700 V	1.575 in	0.787 in	1.634 in	0.33 µF
