FI-RE51HL-KITASSY-300M

Obsolete

JAE Electronics

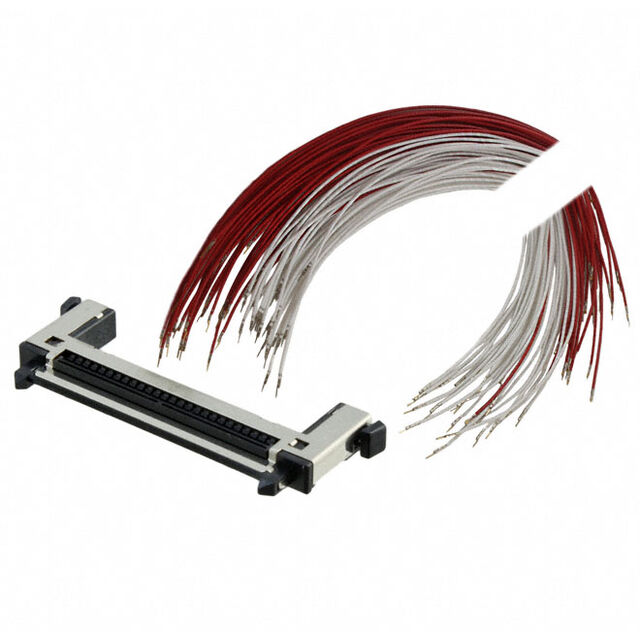

CABLE ASSY FI-RE 51POS 300MM

Search across all available documentation for this part.

Obsolete

JAE Electronics

CABLE ASSY FI-RE 51POS 300MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Note	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Fastening Type	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Contact Finish	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Length [x]	Length [x]	Length [x]	Color
JAE Electronics FI-RE51HLS-M	Crimp	Contacts Not Included	Free Hanging (In-Line)	Blade Pin	0.5 mm	0.02 in	Plug	1	Latch Lock	51
JAE Electronics FI-RE51HL	Crimp	Contacts Not Included	Free Hanging (In-Line)	Blade Pin	0.5 mm	0.02 in	Plug	1	Latch Lock	51	Thermoplastic	-40 °C	80 C
JAE Electronics FI-RE51HL-KITASSY-300M							Plug to Plug	1		51				Display Cable	Tin	0.02 in	0.5 mm	Assembly Kit	Crimp	0.984 '	11.81 "	300 mm	Gray Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

51 Position Cable Assembly Rectangular Plug to Plug 0.984' (300.00mm, 11.81")
