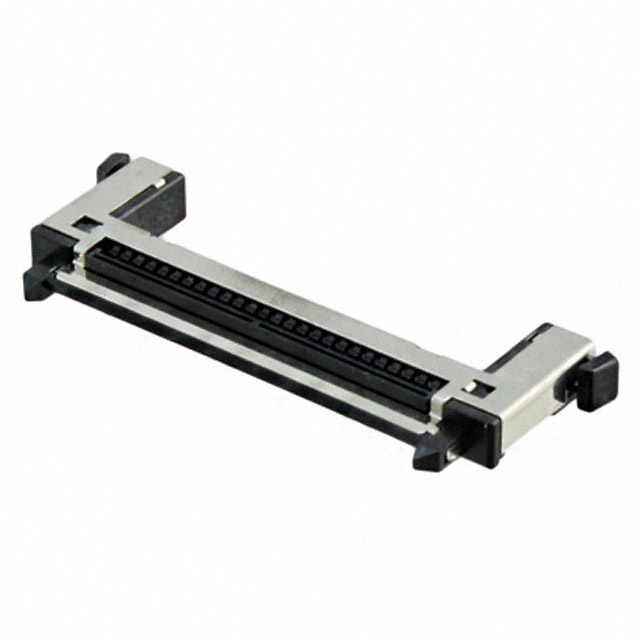

FI-RE51HL

Active

JAE Electronics

CONN PLUG HSG 51POS 0.50MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 51POS 0.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Note	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Fastening Type	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Contact Finish	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Length [x]	Length [x]	Length [x]	Color
JAE Electronics FI-RE51HLS-M	Crimp	Contacts Not Included	Free Hanging (In-Line)	Blade Pin	0.5 mm	0.02 in	Plug	1	Latch Lock	51
JAE Electronics FI-RE51HL	Crimp	Contacts Not Included	Free Hanging (In-Line)	Blade Pin	0.5 mm	0.02 in	Plug	1	Latch Lock	51	Thermoplastic	-40 °C	80 C
JAE Electronics FI-RE51HL-KITASSY-300M							Plug to Plug	1		51				Display Cable	Tin	0.02 in	0.5 mm	Assembly Kit	Crimp	0.984 '	11.81 "	300 mm	Gray Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Rectangular Connectors - Housings Plug 0.020" (0.50mm)
