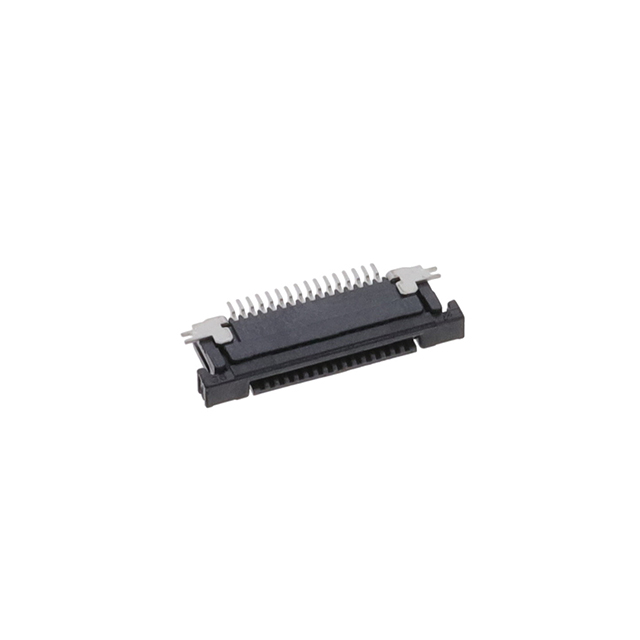

SFV16R-2STE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 16POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV16R-2STE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 16POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV16R-2STE1HLF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Notched |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.37 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
Description
General part information
SFV16R Series
16 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Documents
Technical documentation and resources
