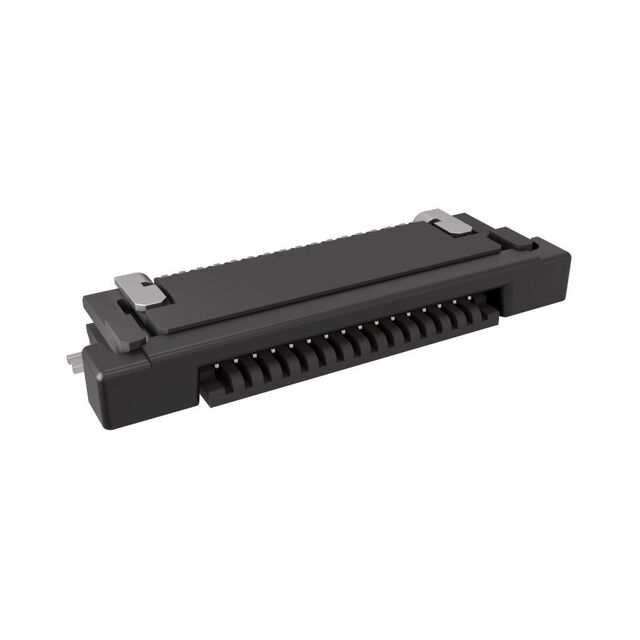

SFV16R-1STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC BOTTOM 16POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV16R-1STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC BOTTOM 16POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV16R-1STBE1HLF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV16R Series
| Part | Contact Finish | Pitch [x] | Pitch [x] | Current Rating (Amps) | Height Above Board | Height Above Board | Mating Cycles | Material Flammability Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Housing Material | Connector/Contact Type | Actuator Color | FFC, FCB Thickness | Contact Material | Cable End Type | Mounting Type | Flat Flex Type | Termination | Locking Feature | Features | Housing Color | Voltage Rating | FFC, FCB Thickness [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | 0.5 mm | 0.02 in | 0.5 A | 1.8 mm | 0.071 in | 20 | UL94 V-0 | 16 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Black | 0.3 mm | Phosphor Bronze | Tapered | Surface Mount Right Angle | FFC FPC | Solder | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Black | 50 V | |
Amphenol ICC (FCI) | Tin | 0.5 mm | 0.02 in | 0.5 A | 1.8 mm | 0.071 in | UL94 V-0 | 16 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | Polyamide (PA) Nylon Glass Filled | Contacts Top | Brown | Phosphor Bronze | Straight Tapered | Surface Mount Right Angle | FFC FPC | Solder | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Black | 50 V | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | Gold | 0.5 mm | 0.02 in | 0.5 A | 1.8 mm | 0.071 in | 20 | UL94 V-0 | 16 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Bottom | Brown | Phosphor Bronze | Tapered | Surface Mount Right Angle | FFC FPC | Solder | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Black | 50 V | 0.3 mm 0.33 mm | |
Amphenol ICC (FCI) | Tin | 0.5 mm | 0.02 in | 0.5 A | 1.8 mm | 0.071 in | UL94 V-0 | 16 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | Polyamide (PA) Nylon Glass Filled | Contacts Bottom | Brown | Phosphor Bronze | Straight Tapered | Surface Mount Right Angle | FFC FPC | Solder | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | Black | 50 V | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | Tin | 0.5 mm | 0.02 in | 0.5 A | 1.8 mm | 0.071 in | 20 | UL94 V-0 | 16 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Contacts Top | Brown | Phosphor Bronze | Notched | Surface Mount Right Angle | FFC FPC | Solder | Slide Lock | Black | 50 V | 0.3 mm 0.33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.21 | ||
Description
General part information
SFV16R Series
16 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
