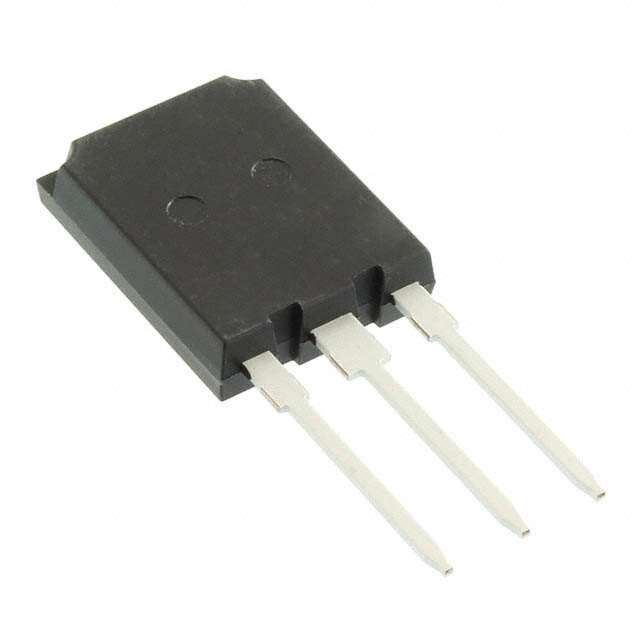

IKQ75N120CT2XKSA1

NRND

Infineon Technologies

1200 V, 75 A TRENCHSTOP™ IGBT 2 WITH ANTI-PARALLEL DIODE IN TO247 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 2 KHZ TO 20 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE BATTERY CHARGER, ENERGY STORAGE, UNINTERRUPTIBLE POWER SUPPLY OR WELDING.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IKQ75N120CT2XKSA1

NRND

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IKQ75N120CT2XKSA1

Current - Collector (Ic) (Max) [Max]	150 A
Current - Collector Pulsed (Icm)	300 A
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-3
Power - Max [Max]	938 W
Supplier Device Package	PG-TO247-3-46
Switching Energy	6.7 mJ, 4.1 mJ
Td (on/off) @ 25°C	37 ns, 328 ns
Test Condition	6 Ohm, 75 A, 600 V, 15 V
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

IKQ75N120 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Td (on/off) @ 25°C	Reverse Recovery Time (trr)	Power - Max [Max]	IGBT Type	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Switching Energy	Td (on/off) @ 25°C	Test Condition
Infineon Technologies IKQ75N120CH7XKSA1	-40 C	175 °C	518 nC	300 A	2.15 V	TO-247-3	Through Hole	1200 V	56 ns 470 ns	149 ns	549 W	Trench Field Stop	82 A	PG-TO247-3-U01	1.76 mJ 5.28 mJ
Infineon Technologies IKQ75N120CS6XKSA1	-40 C	175 °C	530 nC	300 A	2.15 V	TO-247-3	Through Hole	1200 V	34 ns	440 ns	880 W	Trench Field Stop	150 A	PG-TO247-3-46	2.95 mJ 5.15 mJ	300 ns	4 Ohm 15 V 75 A 600 V
Infineon Technologies IKQ75N120CT2XKSA1	-40 C	175 °C		300 A	2.15 V	TO-247-3	Through Hole	1200 V	37 ns 328 ns		938 W	Trench Field Stop	150 A	PG-TO247-3-46	4.1 mJ 6.7 mJ		6 Ohm 15 V 75 A 600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.65
		30	$ 13.48
		120	$ 12.69
		510	$ 11.50

Description

General part information

IKQ75N120 Series

Hard switching 1200 V, 75 ATRENCHSTOP™ 2 IGBTwith soft, fast recovery full current rated anti-parallel emitter controlled diode inTO-247PLUSpackage for higher current capability, improved thermal behaviour. The TO-247PLUS has the same outer dimensions as the industry standard TO-247, but due to the absence of the screw hole, allows up to 75A in 1200V co-packed with full rated 75A diode.
