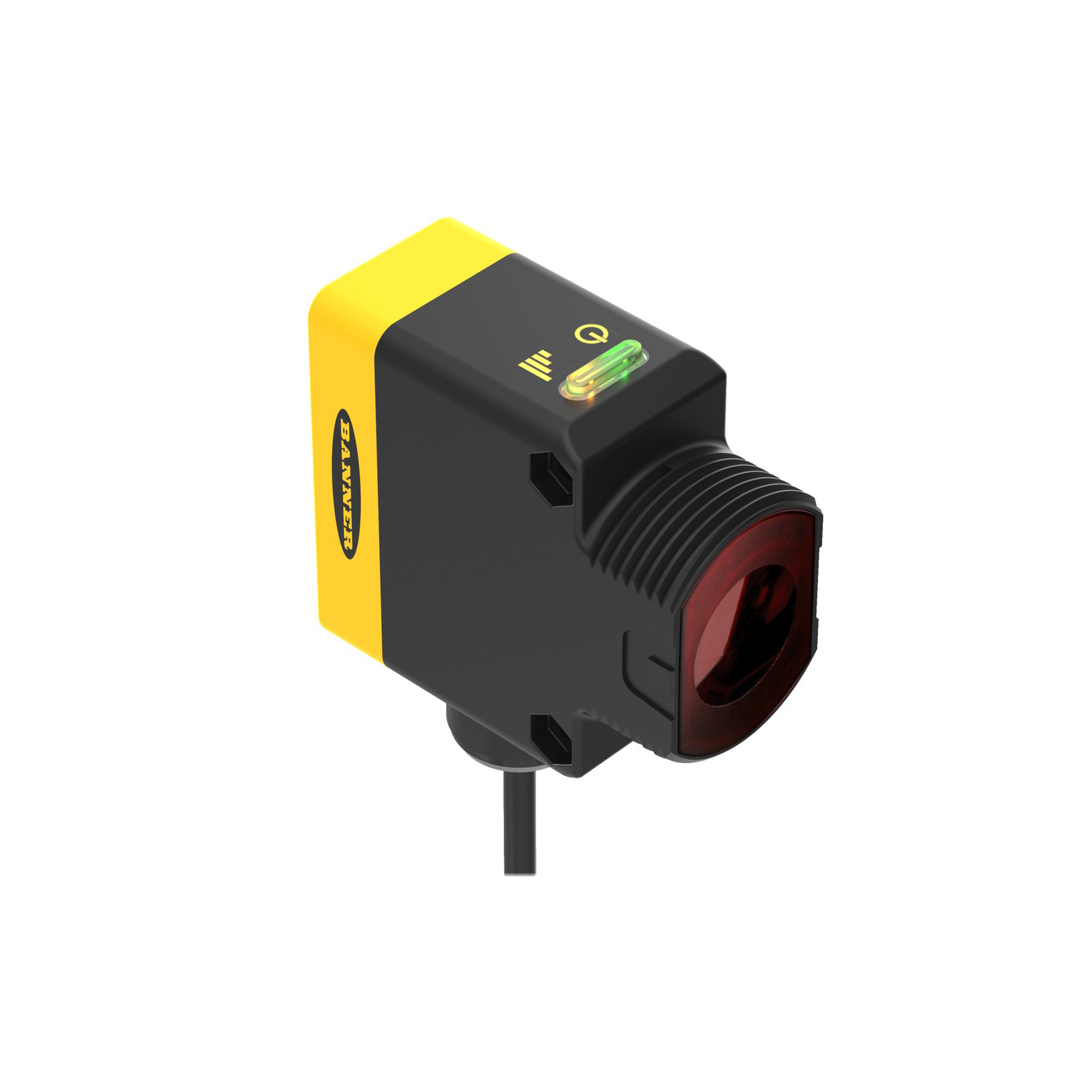

QS30RRH2OQ5

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: H2O RECEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: H2O RECEIVER

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Ingress Protection	Light Source	Sensing Distance	Sensing Distance	Response Time
BANNER ENGINEERING QS30RRXQ	Through-Beam	-20 C	70 °C	Connector	30 VDC	10 VDC	Dark-On NPN/PNP	IP67 NEMA 6P	Infrared LED	213 m	698.82 ft
BANNER ENGINEERING QS30RQ	Through-Beam	-20 C	70 °C	Connector	30 VDC	10 VDC	NPN/PNP - Dark-ON/Light-ON	IP67 NEMA 6P	Infrared LED	60 m	196.85 ft
BANNER ENGINEERING QS30RRH2OQ5	Through-Beam	-20 C	60 °C	Connector	30 VDC	10 VDC	Dark-On NPN/PNP	NEMA 6P IEC IP67	LED	2 m	78.74 "	1 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 262.00
Newark	Each	1	$ 266.00

General part information

Through-Beam Optical Sensor 78.740" (2m) NPN/PNP - Dark-ON

Technical documentation and resources
