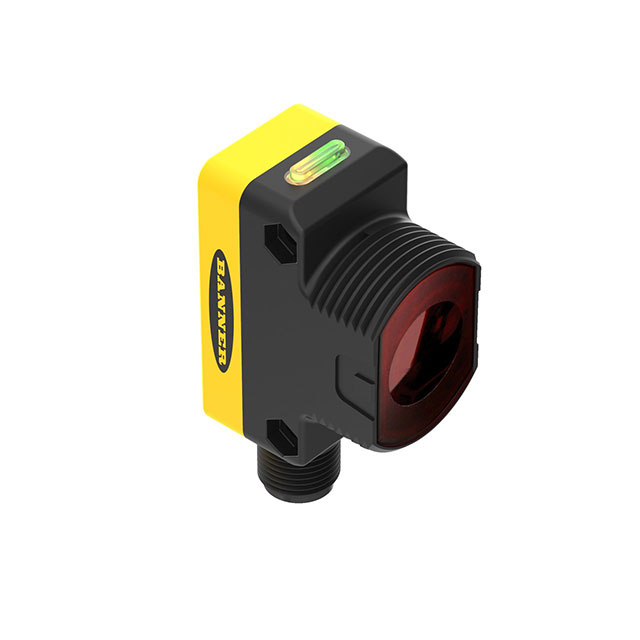

QS30RQ

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR; SENSING METHOD:OPPOSED; PRODUCT RANGE:QS30 SERIES; CONNECTION METHOD:CABLE; SUPPLY VOLTAGE MIN:10VDC; SUPPLY VOLTAGE MAX:30VDC; BODY MATERIAL:ABS; CONTACT CURRENT MAX:40MA; OUTPUT CURRENT:100MA ROHS COMPLIANT: YES |BANNER ENGINEERING QS30RQ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

QS30RQ

Active

BANNER ENGINEERING

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS30RQ

Connection Method	Connector
Ingress Protection	NEMA 6P, IP67
Light Source	Infrared LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Sensing Distance	60 m
Sensing Distance	196.85 ft
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS30R Series

Part	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Ingress Protection	Light Source	Sensing Distance	Sensing Distance	Response Time
BANNER ENGINEERING QS30RRXQ	Through-Beam	-20 C	70 °C	Connector	30 VDC	10 VDC	Dark-On NPN/PNP	IP67 NEMA 6P	Infrared LED	213 m	698.82 ft
BANNER ENGINEERING QS30RQ	Through-Beam	-20 C	70 °C	Connector	30 VDC	10 VDC	NPN/PNP - Dark-ON/Light-ON	IP67 NEMA 6P	Infrared LED	60 m	196.85 ft
BANNER ENGINEERING QS30RRH2OQ5	Through-Beam	-20 C	60 °C	Connector	30 VDC	10 VDC	Dark-On NPN/PNP	NEMA 6P IEC IP67	LED	2 m	78.74 "	1 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.00
Newark	Each	1	$ 97.02

Description

General part information

QS30R Series

Through-Beam Optical Sensor 196.85' (60m) NPN/PNP - Dark-ON/Light-ON

Documents

Technical documentation and resources

Drawing EN

Datasheet
