ANT-2.4-PW-LP
ActiveTE Connectivity Linx

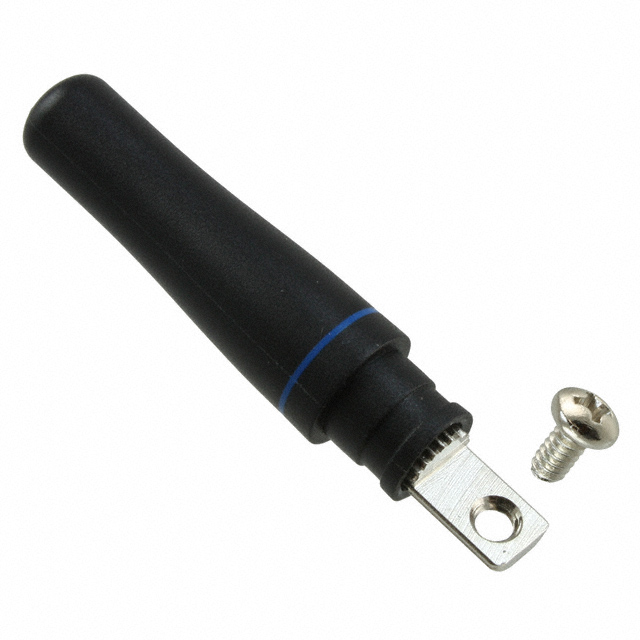

RF ANT 2.4GHZ WHIP STR SCREW-MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-2.4-PW-LP
ActiveTE Connectivity Linx
RF ANT 2.4GHZ WHIP STR SCREW-MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANT-2.4-PW-LP | ANT-2.4 Series |
|---|---|---|
| Antenna Type | Whip, Straight | Dome, Whip, Straight, Tilt, Whip, Chip, Ceramic Patch |
| Applications | Thread, Zigbee™, Wi-Fi, Bluetooth | Thread, Zigbee™, Wi-Fi, Bluetooth, ISM, WiFi, WLAN, U-NII, 802.15.4, General Purpose |
| Features | - | Cable, Cable - 1m, Cable - 2m |
| Features | - | 125 - 305 mm |
| Frequency (Center/Band) | - | 2.3 - 2.6 GHz |
| Frequency Range [Max] | 2600 MHz | 2.48 - 2600 GHz |
| Frequency Range [Min] | 2.35 GHz | 2.3 - 2.4 GHz |
| Gain | -1.9 dBi | -9 - 7 dBi |
| Height (Max) | 50.5 mm | 5.917 - 637 mm |
| Height (Max) | - | 0.062 - 142 mm |
| Height (Max) | - | 0.2 - 25.079 in |
| Height (Max) | - | 3.465 in |
| Height (Max) | - | 1.57 mm |
| Height (Max) | - | 150.3 mm |
| Height (Max) | - | 4 - 105 mm |
| Height (Max) [Max] | 1.988 in | 0.571 - 7.618 in |
| Ingress Protection | - | IP67 |
| Mounting Type | - | Connector Mount, Surface Mount, Adhesive, Bracket Mount, Through Hole |
| Number of Bands | 1 | 1 |
| Power - Max | - | 5 - 20 W |
| Return Loss | - | -14.6 - -6.9 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 | WiFi, Bluetooth, 802.15.4 |
| Termination | Screw-Mount | IPEX MHF1, U.FL (UMCC), RP-SMA Male, N Type Female, MHF4, Screw-Mount, Solder, Pin, RP-SMA Female |
| VSWR | 1.9 | 1.5 - 2.7 |
ANT-2.4 Series
RF ANT 2.4GHZ DOME U.FL PANEL MT
| Part | Height (Max) [Max] | Height (Max) | Antenna Type | Number of Bands | VSWR | Features | Features | Termination | Applications | Frequency (Center/Band) | Frequency Range [Max] | Frequency Range [Min] | RF Family/Standard | Mounting Type | Height (Max) [Max] | Gain | Power - Max [Max] | Height (Max) [Max] [z] | Height (Max) | Return Loss | Height (Max) [Max] | Height (Max) | Height (Max) [Max] [z] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx ANT-2.4-WRT-MON-UFL | 1.063 in | 27 mm | Dome | 1 | 1.9 | Cable | 216 mm | IPEX MHF1, U.FL (UMCC) | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.4 GHz, 2.5 GHz | 2.5 GHz | 2.4 GHz | 802.15.4, Bluetooth, WiFi | |||||||||||
TE Connectivity Linx ANT-2.4-CW-CT-RPS | 4.449 in | Whip, Straight | 1 | 1.9 | RP-SMA Male | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.525 GHz | 2.375 GHz | 802.15.4, Bluetooth, WiFi | Connector Mount | 113 mm | 2.8 dBi | ||||||||||||
TE Connectivity Linx ANT-2.4-OM-CM-01-N | 637 mm | Whip, Straight | 1 | 1.5 | N Type Female | 2.483 GHz | 2.4 GHz | Connector Mount | 7 dBi | 20 W | 25.079 in | |||||||||||||
TE Connectivity Linx ANT-2.4-LCW-RPS | 3.272 in | Tilt, Whip | 1 | 1.9 | RP-SMA Male | ISM, U-NII, WiFi, WLAN | 2.5 GHz | 2.4 GHz | Connector Mount | 83.1 mm | 2.8 dBi | |||||||||||||
TE Connectivity Linx ANT-2.4-CW-RH-RPS | 1.063 in | 27 mm | Whip, Straight | 1 | 2 | RP-SMA Male | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.49 GHz | 2.39 GHz | 802.15.4, Bluetooth, WiFi | Connector Mount | -9 dBi | ||||||||||||
TE Connectivity Linx ANT-2.4-OC-LG-RPS | 7.618 in | 193.5 mm | Tilt, Whip | 1 | 2 | RP-SMA Male | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.55 GHz | 2.39 GHz | 802.15.4, Bluetooth, WiFi | Connector Mount | 4 dBi | ||||||||||||
TE Connectivity Linx ANT-2.4-CW-HWR-RPS | 5.591 in | Tilt, Whip | 1 | 2 | RP-SMA Male | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2600 MHz | 2.3 GHz | 802.15.4, Bluetooth, WiFi | Connector Mount | 142 mm | |||||||||||||
TE Connectivity Linx ANT-2.4-WRT-MON-MHF4 | 1.063 in | 27 mm | Dome | 1 | 1.7 | Cable | 216 mm | MHF4 | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.5 GHz | 2.4 GHz | 802.15.4, Bluetooth, WiFi | 2.7 dBi | 5 W | ||||||||||
TE Connectivity Linx ANT-2.4-CW-RCL | 88 mm | 1 | 1.7 | RP-SMA Male | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2.5 GHz | 2.4 GHz | 802.15.4, Bluetooth, WiFi | Connector Mount | 1.1 dBi | 3.465 in | |||||||||||||
TE Connectivity Linx ANT-2.4-PW-LP | 1.988 in | 50.5 mm | Whip, Straight | 1 | 1.9 | Screw-Mount | Bluetooth, Thread, Wi-Fi, Zigbee™ | 2600 MHz | 2.35 GHz | 802.15.4, Bluetooth, WiFi | -1.9 dBi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 600 | $ 2.64 | |
Description
General part information
ANT-2.4 Series
RF ANTENNA Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Straight Screw-Mount Panel Mount
