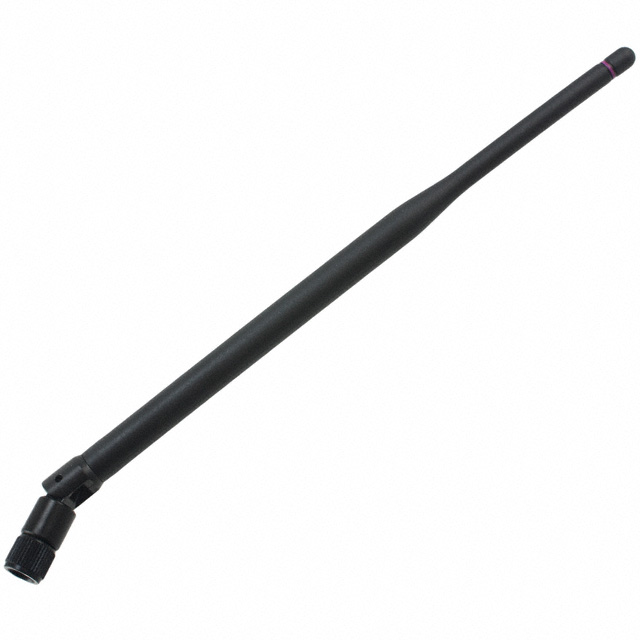

ANT-2.4-OC-LG-RPS

Active

TE Connectivity Linx

RF ANT 2.4GHZ WHIP TILT RP-SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-2.4-OC-LG-RPS

Active

TE Connectivity Linx

RF ANT 2.4GHZ WHIP TILT RP-SMA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-2.4-OC-LG-RPS	ANT-2.4 Series

Antenna Type	Tilt, Whip	Dome, Whip, Straight, Tilt, Whip, Chip, Ceramic Patch
Applications	Thread, Zigbee™, Wi-Fi, Bluetooth	Thread, Zigbee™, Wi-Fi, Bluetooth, ISM, WiFi, WLAN, U-NII, 802.15.4, General Purpose
Features	-	Cable, Cable - 1m, Cable - 2m
Features	-	125 - 305 mm
Frequency (Center/Band)	-	2.3 - 2.6 GHz
Frequency Range [Max]	2.55 GHz	2.48 - 2600 GHz
Frequency Range [Min]	2.39 GHz	2.3 - 2.4 GHz
Gain	4 dBi	-9 - 7 dBi
Height (Max)	193.5 mm	5.917 - 637 mm
Height (Max)	-	0.062 - 142 mm
Height (Max)	-	0.2 - 25.079 in
Height (Max)	-	3.465 in
Height (Max)	-	1.57 mm
Height (Max)	-	150.3 mm
Height (Max)	-	4 - 105 mm
Height (Max) [Max]	7.618 in	0.571 - 7.618 in
Ingress Protection	-	IP67
Mounting Type	Connector Mount	Connector Mount, Surface Mount, Adhesive, Bracket Mount, Through Hole
Number of Bands	1	1
Power - Max	-	5 - 20 W
Return Loss	-	-14.6 - -6.9 dB
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Termination	RP-SMA Male	IPEX MHF1, U.FL (UMCC), RP-SMA Male, N Type Female, MHF4, Screw-Mount, Solder, Pin, RP-SMA Female
VSWR	2	1.5 - 2.7

ANT-2.4 Series

RF ANT 2.4GHZ DOME U.FL PANEL MT

Part	Height (Max) [Max]	Height (Max)	Antenna Type	Number of Bands	VSWR	Features	Features	Termination	Applications	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Mounting Type	Height (Max) [Max]	Gain	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max)
TE Connectivity Linx ANT-2.4-WRT-MON-UFL	1.063 in	27 mm	Dome	1	1.9	Cable	216 mm	IPEX MHF1, U.FL (UMCC)	Bluetooth, Thread, Wi-Fi, Zigbee™	2.4 GHz, 2.5 GHz	2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi
TE Connectivity Linx ANT-2.4-CW-CT-RPS	4.449 in		Whip, Straight	1	1.9			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.525 GHz	2.375 GHz	802.15.4, Bluetooth, WiFi	Connector Mount	113 mm	2.8 dBi
TE Connectivity Linx ANT-2.4-OM-CM-01-N		637 mm	Whip, Straight	1	1.5			N Type Female			2.483 GHz	2.4 GHz		Connector Mount		7 dBi	20 W	25.079 in
TE Connectivity Linx ANT-2.4-LCW-RPS	3.272 in		Tilt, Whip	1	1.9			RP-SMA Male	ISM, U-NII, WiFi, WLAN		2.5 GHz	2.4 GHz		Connector Mount	83.1 mm	2.8 dBi
TE Connectivity Linx ANT-2.4-CW-RH-RPS	1.063 in	27 mm	Whip, Straight	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.49 GHz	2.39 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		-9 dBi
TE Connectivity Linx ANT-2.4-OC-LG-RPS	7.618 in	193.5 mm	Tilt, Whip	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.55 GHz	2.39 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		4 dBi
TE Connectivity Linx ANT-2.4-CW-HWR-RPS	5.591 in		Tilt, Whip	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2600 MHz	2.3 GHz	802.15.4, Bluetooth, WiFi	Connector Mount	142 mm
TE Connectivity Linx ANT-2.4-WRT-MON-MHF4	1.063 in	27 mm	Dome	1	1.7	Cable	216 mm	MHF4	Bluetooth, Thread, Wi-Fi, Zigbee™		2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi			2.7 dBi	5 W
TE Connectivity Linx ANT-2.4-CW-RCL		88 mm		1	1.7			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		1.1 dBi			3.465 in
TE Connectivity Linx ANT-2.4-PW-LP	1.988 in	50.5 mm	Whip, Straight	1	1.9			Screw-Mount	Bluetooth, Thread, Wi-Fi, Zigbee™		2600 MHz	2.35 GHz	802.15.4, Bluetooth, WiFi			-1.9 dBi

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.97

Description

General part information

ANT-2.4 Series

RF ANTENNA Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Tilt RP-SMA Male Connector Mount
