ANT-2.4-WRT-MON-MHF4

Active

TE Connectivity Linx

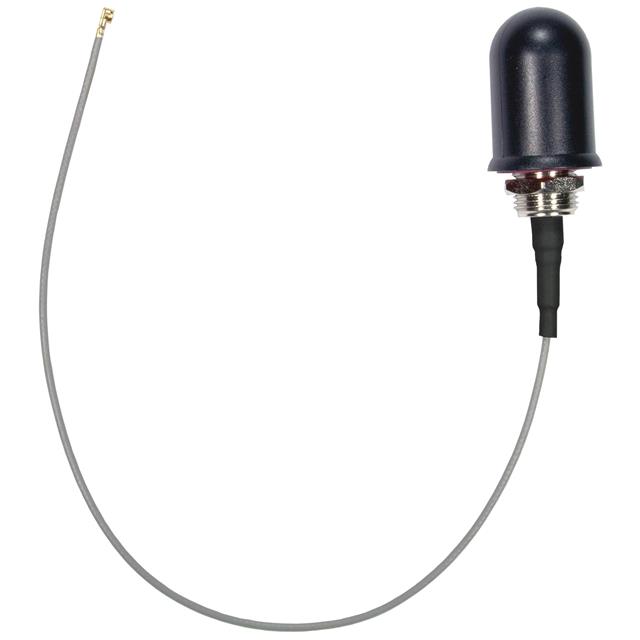

ANT 2.4GHZ DOME PNL MNT MHF4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-2.4-WRT-MON-MHF4

Active

TE Connectivity Linx

ANT 2.4GHZ DOME PNL MNT MHF4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.85
		10	$ 15.63
		25	$ 15.42
		100	$ 15.01
		250	$ 14.63
		500	$ 14.26

Description

General part information

ANT-2.4 Series

RF ANTENNA Bluetooth, Thread, Wi-Fi, Zigbee™ Dome MHF4 Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-2.4-WRT-MON-MHF4	ANT-2.4 Series

Antenna Type	Dome	Dome, Whip, Straight, Tilt, Whip, Chip, Ceramic Patch
Applications	Thread, Zigbee™, Wi-Fi, Bluetooth	Thread, Zigbee™, Wi-Fi, Bluetooth, ISM, WiFi, WLAN, U-NII, 802.15.4, General Purpose
Features	Cable	Cable, Cable - 1m, Cable - 2m
Features	216 mm	125 - 305 mm
Frequency (Center/Band)	-	2.3 - 2.6 GHz
Frequency Range [Max]	2.5 GHz	2.48 - 2600 GHz
Frequency Range [Min]	2.4 GHz	2.3 - 2.4 GHz
Gain	2.7 dBi	-9 - 7 dBi
Height (Max)	27 mm	5.917 - 637 mm
Height (Max)	-	0.062 - 142 mm
Height (Max)	-	0.2 - 25.079 in
Height (Max)	-	3.465 in
Height (Max)	-	1.57 mm
Height (Max)	-	150.3 mm
Height (Max)	-	4 - 105 mm
Height (Max) [Max]	1.063 in	0.571 - 7.618 in
Ingress Protection	-	IP67
Mounting Type	-	Connector Mount, Surface Mount, Adhesive, Bracket Mount, Through Hole
Number of Bands	1	1
Power - Max [Max]	5 W	5 - 20 W
Return Loss	-	-14.6 - -6.9 dB
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Termination	MHF4	IPEX MHF1, U.FL (UMCC), RP-SMA Male, N Type Female, MHF4, Screw-Mount, Solder, Pin, RP-SMA Female
VSWR	1.7	1.5 - 2.7

ANT-2.4 Series

RF ANT 2.4GHZ DOME U.FL PANEL MT

Part	Height (Max) [Max]	Height (Max)	Antenna Type	Number of Bands	VSWR	Features	Features	Termination	Applications	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Mounting Type	Height (Max) [Max]	Gain	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max)
TE Connectivity Linx ANT-2.4-WRT-MON-UFL	1.063 in	27 mm	Dome	1	1.9	Cable	216 mm	IPEX MHF1, U.FL (UMCC)	Bluetooth, Thread, Wi-Fi, Zigbee™	2.4 GHz, 2.5 GHz	2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi
TE Connectivity Linx ANT-2.4-CW-CT-RPS	4.449 in		Whip, Straight	1	1.9			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.525 GHz	2.375 GHz	802.15.4, Bluetooth, WiFi	Connector Mount	113 mm	2.8 dBi
TE Connectivity Linx ANT-2.4-OM-CM-01-N		637 mm	Whip, Straight	1	1.5			N Type Female			2.483 GHz	2.4 GHz		Connector Mount		7 dBi	20 W	25.079 in
TE Connectivity Linx ANT-2.4-LCW-RPS	3.272 in		Tilt, Whip	1	1.9			RP-SMA Male	ISM, U-NII, WiFi, WLAN		2.5 GHz	2.4 GHz		Connector Mount	83.1 mm	2.8 dBi
TE Connectivity Linx ANT-2.4-CW-RH-RPS	1.063 in	27 mm	Whip, Straight	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.49 GHz	2.39 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		-9 dBi
TE Connectivity Linx ANT-2.4-OC-LG-RPS	7.618 in	193.5 mm	Tilt, Whip	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.55 GHz	2.39 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		4 dBi
TE Connectivity Linx ANT-2.4-CW-HWR-RPS	5.591 in		Tilt, Whip	1	2			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2600 MHz	2.3 GHz	802.15.4, Bluetooth, WiFi	Connector Mount	142 mm
TE Connectivity Linx ANT-2.4-WRT-MON-MHF4	1.063 in	27 mm	Dome	1	1.7	Cable	216 mm	MHF4	Bluetooth, Thread, Wi-Fi, Zigbee™		2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi			2.7 dBi	5 W
TE Connectivity Linx ANT-2.4-CW-RCL		88 mm		1	1.7			RP-SMA Male	Bluetooth, Thread, Wi-Fi, Zigbee™		2.5 GHz	2.4 GHz	802.15.4, Bluetooth, WiFi	Connector Mount		1.1 dBi			3.465 in
TE Connectivity Linx ANT-2.4-PW-LP	1.988 in	50.5 mm	Whip, Straight	1	1.9			Screw-Mount	Bluetooth, Thread, Wi-Fi, Zigbee™		2600 MHz	2.35 GHz	802.15.4, Bluetooth, WiFi			-1.9 dBi
