MAX13047EETB+T

Active

Analog Devices Inc./Maxim Integrated

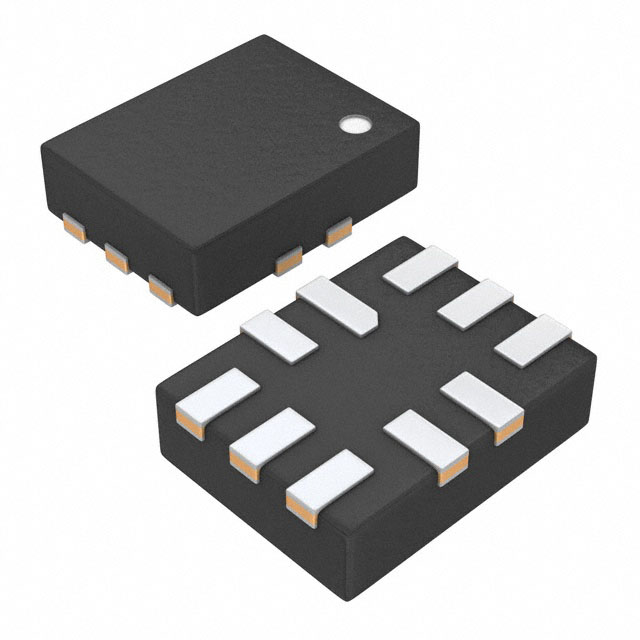

IC TRANSLATOR BIDIR 10UTQFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC TRANSLATOR BIDIR 10UTQFN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltage Level Translator Bidirectional 1 Circuit 2 Channel 16Mbps 10-UTQFN (1.4x1.8)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MAX13047EETB+T	MAX13047 Series

Channel Type	Bidirectional	Bidirectional
Channels per Circuit	2	2
Data Rate	16 MBd	16 MBd
Embedded	-	False
Features	Thermal-Shutdown Protection	Thermal-Shutdown Protection
Function	-	Logic-Level Translator
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Push-Pull	Push-Pull
Package / Case	10-UFQFN	8-WFDFN Exposed Pad, 10-UFQFN
Primary Attributes	-	2 Channel Bi-Directional
Secondary Attributes	-	Translates Between VL and VCC Logic Levels for Data Rates up to 16Mbps
Supplied Contents	-	Board(s)
Supplier Device Package	10-UTQFN (1.4x1.8)	8-TDFN-EP (2x2), 10-UTQFN (1.4x1.8)
Translator Type	Voltage Level	Voltage Level
Type	-	Interface
Utilized IC / Part	-	MAX13047E
Voltage - VCCA [Max]	3.6 V	3.6 V
Voltage - VCCA [Min]	1.1 V	1.1 V
Voltage - VCCB [Max]	5.5 V	5.5 V
Voltage - VCCB [Min]	1.65 V	1.65 V

IC TRANSLTR BIDIRECTIONAL 8TDFN

Part	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Supplier Device Package	Package / Case	Output Type	Mounting Type	Data Rate	Channels per Circuit	Channel Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Features	Translator Type	Supplied Contents	Primary Attributes	Type	Utilized IC / Part	Secondary Attributes	Function
Analog Devices Inc./Maxim Integrated MAX13047EETA+	1.65 V	5.5 V	3.6 V	1.1 V	8-TDFN-EP (2x2)	8-WFDFN Exposed Pad	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EETA+T	1.65 V	5.5 V	3.6 V	1.1 V	8-TDFN-EP (2x2)	8-WFDFN Exposed Pad	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EEVB+	1.65 V	5.5 V	3.6 V	1.1 V	10-UTQFN (1.4x1.8)	10-UFQFN	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EETB+T	1.65 V	5.5 V	3.6 V	1.1 V	10-UTQFN (1.4x1.8)	10-UFQFN	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EEVKIT+																	Board(s)	2 Channel Bi-Directional	Interface	MAX13047E	Translates Between VL and VCC Logic Levels for Data Rates up to 16Mbps	Logic-Level Translator
