MAX13047EEVKIT+

Active

Analog Devices Inc./Maxim Integrated

KIT EVALUATION FOR MAX13047

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

KIT EVALUATION FOR MAX13047

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX13047EEVKIT+	MAX13047 Series

Channel Type	-	Bidirectional
Channels per Circuit	-	2
Data Rate	-	16 MBd
Embedded	False	False
Features	-	Thermal-Shutdown Protection
Function	Logic-Level Translator	Logic-Level Translator
Mounting Type	-	Surface Mount
Number of Circuits	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	Push-Pull
Package / Case	-	8-WFDFN Exposed Pad, 10-UFQFN
Primary Attributes	2 Channel Bi-Directional	2 Channel Bi-Directional
Secondary Attributes	Translates Between VL and VCC Logic Levels for Data Rates up to 16Mbps	Translates Between VL and VCC Logic Levels for Data Rates up to 16Mbps
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-TDFN-EP (2x2), 10-UTQFN (1.4x1.8)
Translator Type	-	Voltage Level
Type	Interface	Interface
Utilized IC / Part	MAX13047E	MAX13047E
Voltage - VCCA	-	3.6 V
Voltage - VCCA	-	1.1 V
Voltage - VCCB	-	1.65 V
Voltage - VCCB	-	5.5 V

IC TRANSLTR BIDIRECTIONAL 8TDFN

Part	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Supplier Device Package	Package / Case	Output Type	Mounting Type	Data Rate	Channels per Circuit	Channel Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Features	Translator Type	Supplied Contents	Primary Attributes	Type	Utilized IC / Part	Secondary Attributes	Function
Analog Devices Inc./Maxim Integrated MAX13047EETA+	1.65 V	5.5 V	3.6 V	1.1 V	8-TDFN-EP (2x2)	8-WFDFN Exposed Pad	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EETA+T	1.65 V	5.5 V	3.6 V	1.1 V	8-TDFN-EP (2x2)	8-WFDFN Exposed Pad	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EEVB+	1.65 V	5.5 V	3.6 V	1.1 V	10-UTQFN (1.4x1.8)	10-UFQFN	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EETB+T	1.65 V	5.5 V	3.6 V	1.1 V	10-UTQFN (1.4x1.8)	10-UFQFN	Push-Pull	Surface Mount	16 MBd	2	Bidirectional	1	85 °C	-40 °C	Thermal-Shutdown Protection	Voltage Level
Analog Devices Inc./Maxim Integrated MAX13047EEVKIT+																	Board(s)	2 Channel Bi-Directional	Interface	MAX13047E	Translates Between VL and VCC Logic Levels for Data Rates up to 16Mbps	Logic-Level Translator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 59.80

General part information

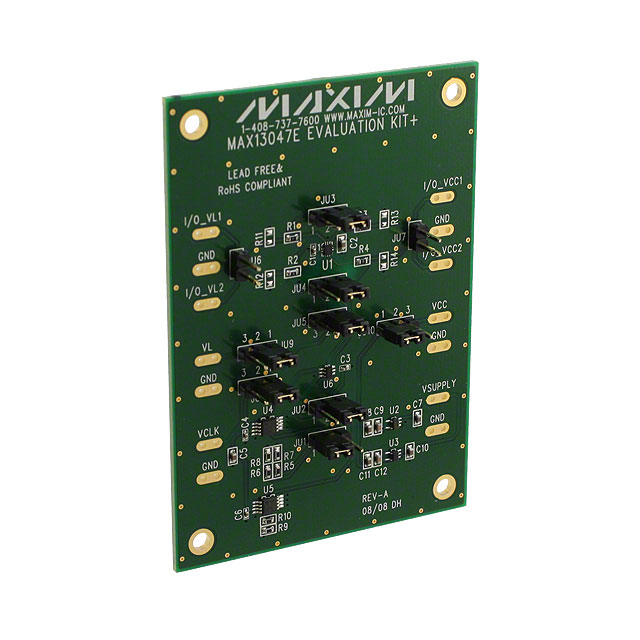

MAX13047E Logic-Level Translator Interface Evaluation Board
