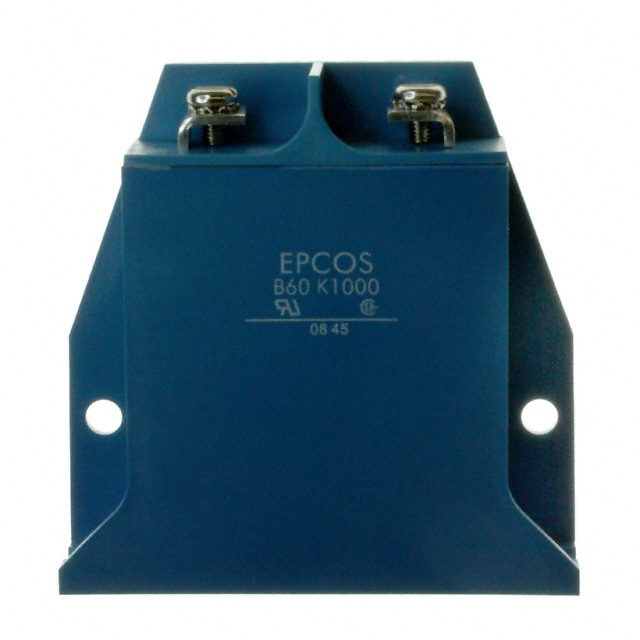

B72260B0102K001

Active

EPCOS - TDK Electronics

VARISTOR 1.8KV 70KA ENCASED DISC

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 1.8KV 70KA ENCASED DISC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.8 kV 70 kA Varistor 1 Circuit Chassis Mount Encased Disc

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 680V 70KA ENCASED DISC

Part	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Mounting Type	Maximum DC Volts [Max]	Package / Case	Number of Circuits	Varistor Voltage (Max) [Max]	Energy	Varistor Voltage (Min) [Min]	Maximum AC Volts
EPCOS - TDK Electronics B72260B0421K001	4300 pF	85 °C	-40 °C	680 V	420 V	Chassis Mount	560 V	Encased Disc	1	748 V	1500 J	612 V
EPCOS - TDK Electronics B72260B0461K001	3900 pF	85 °C	-40 °C	750 V	460 V	Chassis Mount	615 V	Encased Disc	1	825 V	1650 J	675 V
EPCOS - TDK Electronics B72260B0381K001	4600 pF	85 °C	-40 °C	620 V		Chassis Mount	505 V	Encased Disc	1		1200 J	558 V	385 V
EPCOS - TDK Electronics B72260B0321K001	5600 pF	85 °C	-40 °C	510 V	320 V	Chassis Mount	420 V	Encased Disc	1	561 V	1000 J	459 V
EPCOS - TDK Electronics B72260B0441K001	4100 pF	85 °C	-40 °C	715 V	440 V	Chassis Mount	585 V	Encased Disc	1	786.5 V	1580 J	643.5 V
EPCOS - TDK Electronics B72260B0551K001	3300 pF	85 °C	-40 °C	910 V	550 V	Chassis Mount	745 V	Encased Disc	1	1.001 kV	1500 J	819 V
EPCOS - TDK Electronics B72260B0102K001	1600 pF	85 °C	-40 °C	1.8 kV	1.1 kV	Chassis Mount	1.465 kV	Encased Disc	1	1.98 kV	3000 J	1620 V
EPCOS - TDK Electronics B72260B0251K001	7100 pF	85 °C	-40 °C	390 V	250 V	Chassis Mount	320 V	Encased Disc	1	429 V	800 J	351 V
EPCOS - TDK Electronics B72260B0231K001	7900 pF	85 °C	-40 °C	360 V	230 V	Chassis Mount	300 V	Encased Disc	1	396 V	730 J	324 V
EPCOS - TDK Electronics B72260B0751K001	2400 pF	85 °C	-40 °C	1.2 kV	750 V	Chassis Mount		Encased Disc	1	1.32 kV	2000 J	1.08 kV
