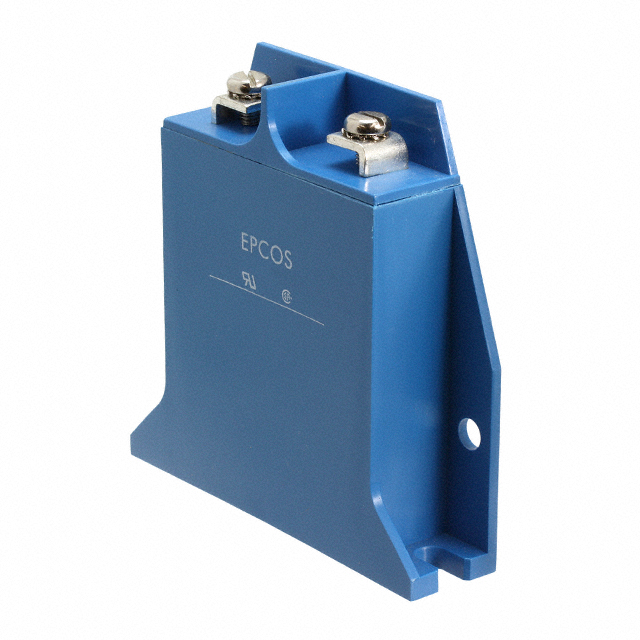

B72260B0231K001

Active

EPCOS - TDK Electronics

VARISTOR 360V 70KA ENCASED DISC

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 360V 70KA ENCASED DISC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

360 V 70 kA Varistor 1 Circuit Chassis Mount Encased Disc

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 680V 70KA ENCASED DISC

Part	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Maximum AC Volts [Max]	Mounting Type	Maximum DC Volts [Max]	Package / Case	Number of Circuits	Varistor Voltage (Max) [Max]	Energy	Varistor Voltage (Min) [Min]	Maximum AC Volts
EPCOS - TDK Electronics B72260B0421K001	4300 pF	85 °C	-40 °C	680 V	420 V	Chassis Mount	560 V	Encased Disc	1	748 V	1500 J	612 V
EPCOS - TDK Electronics B72260B0461K001	3900 pF	85 °C	-40 °C	750 V	460 V	Chassis Mount	615 V	Encased Disc	1	825 V	1650 J	675 V
EPCOS - TDK Electronics B72260B0381K001	4600 pF	85 °C	-40 °C	620 V		Chassis Mount	505 V	Encased Disc	1		1200 J	558 V	385 V
EPCOS - TDK Electronics B72260B0321K001	5600 pF	85 °C	-40 °C	510 V	320 V	Chassis Mount	420 V	Encased Disc	1	561 V	1000 J	459 V
EPCOS - TDK Electronics B72260B0441K001	4100 pF	85 °C	-40 °C	715 V	440 V	Chassis Mount	585 V	Encased Disc	1	786.5 V	1580 J	643.5 V
EPCOS - TDK Electronics B72260B0551K001	3300 pF	85 °C	-40 °C	910 V	550 V	Chassis Mount	745 V	Encased Disc	1	1.001 kV	1500 J	819 V
EPCOS - TDK Electronics B72260B0102K001	1600 pF	85 °C	-40 °C	1.8 kV	1.1 kV	Chassis Mount	1.465 kV	Encased Disc	1	1.98 kV	3000 J	1620 V
EPCOS - TDK Electronics B72260B0251K001	7100 pF	85 °C	-40 °C	390 V	250 V	Chassis Mount	320 V	Encased Disc	1	429 V	800 J	351 V
EPCOS - TDK Electronics B72260B0231K001	7900 pF	85 °C	-40 °C	360 V	230 V	Chassis Mount	300 V	Encased Disc	1	396 V	730 J	324 V
EPCOS - TDK Electronics B72260B0751K001	2400 pF	85 °C	-40 °C	1.2 kV	750 V	Chassis Mount		Encased Disc	1	1.32 kV	2000 J	1.08 kV
