3233-2-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.

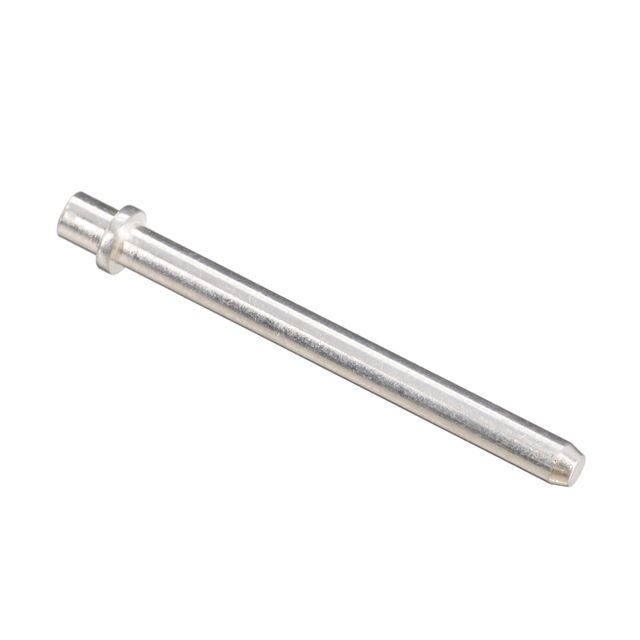

CONN PC PIN CIRC .080DIA TINLEAD
Deep-Dive with AI
Search across all available documentation for this part.
3233-2-00-01-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .080DIA TINLEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3233-2-00-01-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 22.86 mm |
| Length - Above Flange [custom] | 0.9 in |
| Length - Below Flange [x] | 0.094 in |
| Length - Below Flange [x] | 2.39 mm |
| Length - Overall [x] | 1.019 in |
| Length - Overall [x] | 25.88 mm |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.52 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.84 | |||
| 3000 | $ 0.87 | |||
| 5000 | $ 0.75 | |||
| 10000 | $ 0.73 | |||
Description
General part information
3233-2 Series
PC Pin Terminal Connector Through Hole Tin-Lead 0.080" (2.03mm) Dia
Documents
Technical documentation and resources
No documents available
