ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.

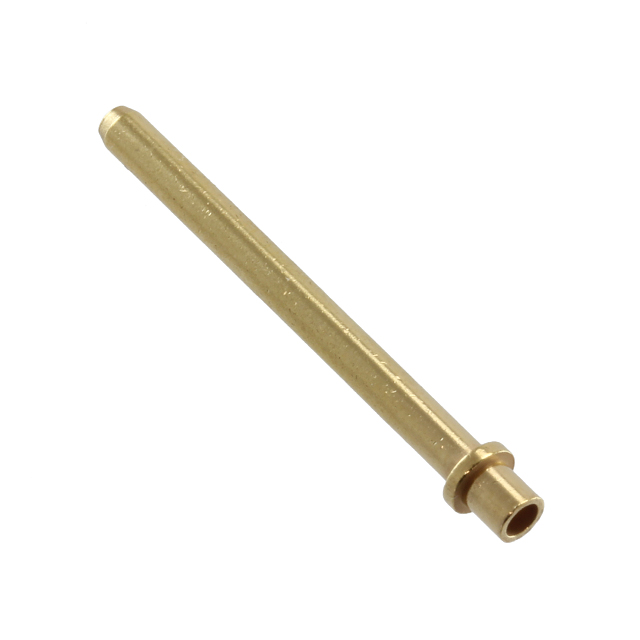

3233-2-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3233-2-00-34-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 22.86 mm |
| Length - Above Flange [custom] | 0.9 in |
| Length - Below Flange [x] | 0.094 in |
| Length - Below Flange [x] | 2.39 mm |
| Length - Overall [x] | 1.019 in |
| Length - Overall [x] | 25.88 mm |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.32 | |
| 10 | $ 4.83 | |||
| 25 | $ 4.58 | |||
| 50 | $ 4.47 | |||
| 100 | $ 4.26 | |||
| 250 | $ 3.72 | |||
| 500 | $ 3.62 | |||
| 1000 | $ 3.09 | |||
| 3000 | $ 2.87 | |||
Description
General part information
3233-2 Series
PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia
