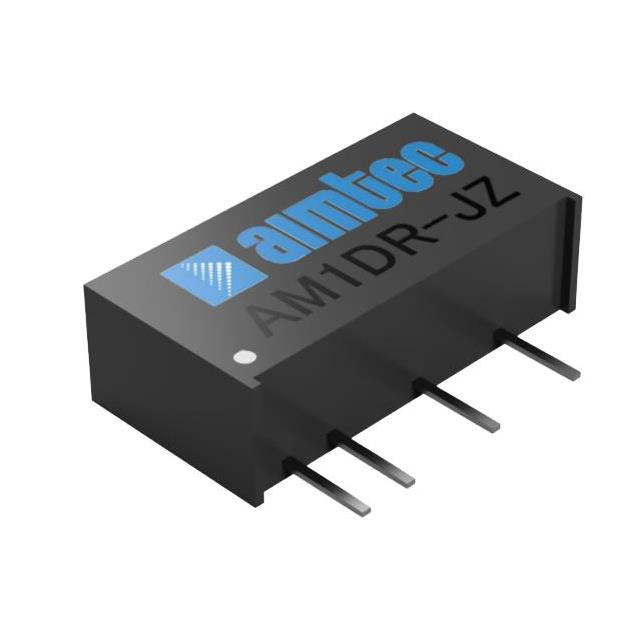

AM1DR-0512SJZ

Unknown

aimtec

DC DC CONVERTER 12V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1DR-0512SJZ	AM1DR Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CE, cULus, cURus
Current - Output (Max) [Max]	84 mA	41 - 303 mA
Efficiency	72 %	61 - 73 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads
Power (Watts)	-	1 - 999 mW
Size / Dimension [x]	19.6 mm	19.5 - 19.7 mm
Size / Dimension [x]	0.77 in	0.76 - 0.77 "
Size / Dimension [y]	0.24 "	0.24 - 0.28 in
Size / Dimension [y]	6 mm	6 - 7.2 mm
Size / Dimension [z]	10.2 mm	9.5 - 10.2 mm
Size / Dimension [z]	0.4 "	0.37 - 0.4 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.25 V	5.25 - 26.4 V
Voltage - Input (Min) [Min]	4.75 V	4.5 - 22.8 V
Voltage - Isolation	1.5 kV	1.5 - 3000 V
Voltage - Output 1	12 V	3.3 - 24 V

AM1DR Series

DC DC CONVERTER 3.3V 1W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Efficiency	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Type	Package / Case	Power (Watts)
aimtec AM1DR-1203S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	10.8 V	13.2 V	CE	Through Hole	61 %	303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module
aimtec AM1DR-0524SJZ	0.38 in	10.2 mm	19.7 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V	cULus, cURus	Through Hole	73 %	41 mA	ITE (Commercial)	1.5 kV	24 V	Isolated Module
aimtec AM1DR-0512SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	72 %	84 mA	ITE (Commercial)	1.5 kV	12 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-2409S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	21.6 V	26.4 V	CE	Through Hole	68 %		ITE (Commercial)	1000 V	9 V	Isolated Module		1 mW
aimtec AM1DR-0505SH30Z	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole	68 %	200 mA	ITE (Commercial)	3000 V	5 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-0503S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole		303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-2403S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	21.6 V	26.4 V	CE	Through Hole	61 %	303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module
aimtec AM1DR-0512SZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole	70 %	84 mA	ITE (Commercial)	1000 V	12 V	Isolated Module
aimtec AM1DR-0505SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	70 %	200 mA	ITE (Commercial)	1.5 kV	5 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-0509SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	71 %		ITE (Commercial)	1.5 kV	9 V	Isolated Module	7-SIP Module, 4 Leads	999 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.59
		5	$ 4.53
		10	$ 4.47
		15	$ 4.38
		25	$ 4.33
		50	$ 4.20
		100	$ 4.07
		250	$ 3.94
		500	$ 3.86

Description

General part information

AM1DR Series

Isolated Module DC DC Converter 1 Output 12V 84mA 4.75V - 5.25V Input
