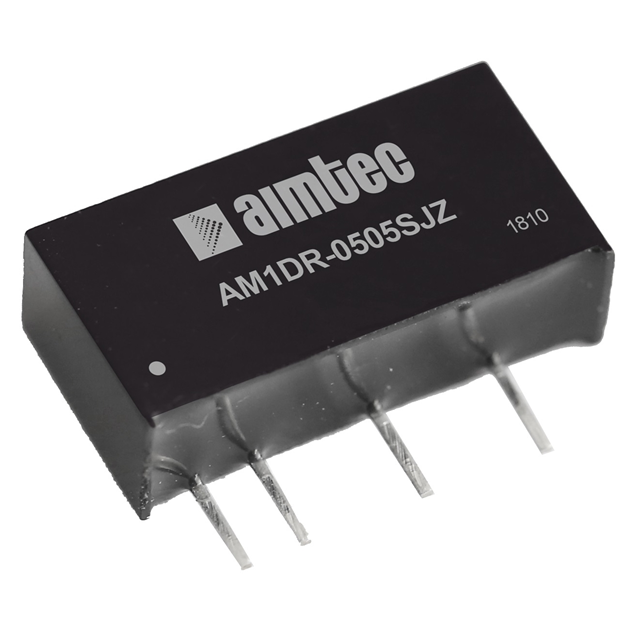

AM1DR-0524SJZ

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DR-0524SJZ

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.64
		5	$ 4.57
		10	$ 4.51
		15	$ 4.42
		25	$ 4.38
		50	$ 4.24
		100	$ 4.11
		250	$ 3.98
		500	$ 3.90

Description

General part information

AM1DR Series

Isolated Module DC DC Converter 1 Output 24V 41mA 4.75V - 5.25V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1DR-0524SJZ	AM1DR Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cULus, cURus	CE, cULus, cURus
Current - Output (Max) [Max]	41 mA	41 - 303 mA
Efficiency	73 %	61 - 73 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads
Power (Watts)	-	1 - 999 mW
Size / Dimension [x]	0.77 in	0.76 - 0.77 "
Size / Dimension [x]	19.7 mm	19.5 - 19.7 mm
Size / Dimension [y]	0.24 "	0.24 - 0.28 in
Size / Dimension [y]	6 mm	6 - 7.2 mm
Size / Dimension [z]	10.2 mm	9.5 - 10.2 mm
Size / Dimension [z]	0.38 in	0.37 - 0.4 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.25 V	5.25 - 26.4 V
Voltage - Input (Min) [Min]	4.75 V	4.5 - 22.8 V
Voltage - Isolation	1.5 kV	1.5 - 3000 V
Voltage - Output 1	24 V	3.3 - 24 V

AM1DR Series

DC DC CONVERTER 3.3V 1W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Efficiency	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Type	Package / Case	Power (Watts)
aimtec AM1DR-1203S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	10.8 V	13.2 V	CE	Through Hole	61 %	303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module
aimtec AM1DR-0524SJZ	0.38 in	10.2 mm	19.7 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V	cULus, cURus	Through Hole	73 %	41 mA	ITE (Commercial)	1.5 kV	24 V	Isolated Module
aimtec AM1DR-0512SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	72 %	84 mA	ITE (Commercial)	1.5 kV	12 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-2409S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	21.6 V	26.4 V	CE	Through Hole	68 %		ITE (Commercial)	1000 V	9 V	Isolated Module		1 mW
aimtec AM1DR-0505SH30Z	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole	68 %	200 mA	ITE (Commercial)	3000 V	5 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-0503S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.77 in	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole		303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-2403S-RZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	21.6 V	26.4 V	CE	Through Hole	61 %	303 mA	ITE (Commercial)	1000 V	3.3 V	Isolated Module
aimtec AM1DR-0512SZ	0.39 in	10 mm	19.5 mm	7.2 mm	0.28 in	0.76 "	85 °C	-40 °C	1	4.5 V	5.5 V	CE	Through Hole	70 %	84 mA	ITE (Commercial)	1000 V	12 V	Isolated Module
aimtec AM1DR-0505SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	70 %	200 mA	ITE (Commercial)	1.5 kV	5 V	Isolated Module	7-SIP Module, 4 Leads
aimtec AM1DR-0509SJZ	0.4 "	10.2 mm	19.6 mm	6 mm	0.24 "	0.77 in	85 °C	-40 °C	1	4.75 V	5.25 V		Through Hole	71 %		ITE (Commercial)	1.5 kV	9 V	Isolated Module	7-SIP Module, 4 Leads	999 mW
