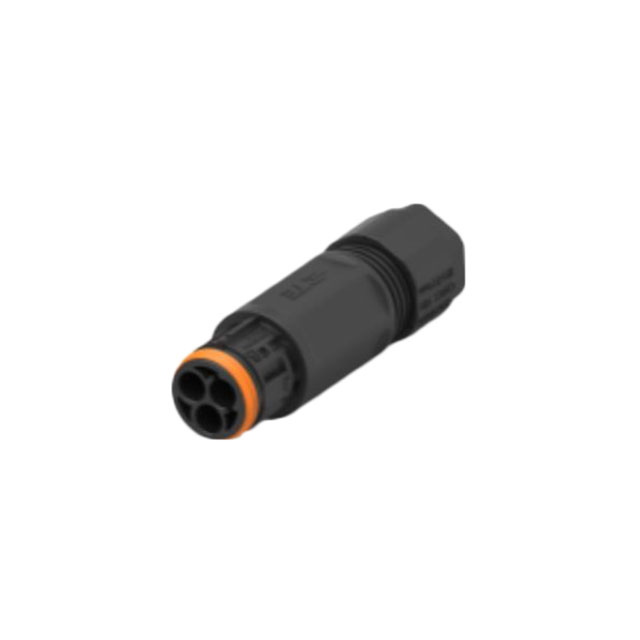

1-2379240-1
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONNECTOR, NECTOR T SERIES, 3 CONTACTS, PLUG, CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
1-2379240-1
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONNECTOR, NECTOR T SERIES, 3 CONTACTS, PLUG, CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2379240-1 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Material | Polycarbonate (PC) |
| Shielding | Unshielded |
| Type | For Male Pins |
NECTOR T Series Series
| Part | Type | Shell Material | Shell Material | Insert Material | Material Flammability Rating | Ingress Protection | Housing Color | Contact Shape | Orientation | Note | Shielding | Fastening Type | Number of Positions | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Features | Current Rating (Amps) | Contact Material | Voltage Rating | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Termination | Applications | Backshell Material, Plating | Color | Primary Material | Cable Opening [custom] | Contact Finish | Style | Housing Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | For Male Pins | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | A | Contacts Not Included | Unshielded | Latch Lock | 3 | Free Hanging (In-Line) | Crimp | 85 °C | -40 °C | Receptacle Housing | Backshell | |||||||||||||||||
TE Connectivity Raychem Cable Protection | For Male Pins | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | B | Contacts Not Included | Unshielded | Latch Lock | 3 | Free Hanging (In-Line) | Crimp | 85 °C | -40 °C | Receptacle Housing | Backshell | |||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | B | Unshielded | Latch Lock Push-Pull | 3 | Free Hanging (In-Line) | 85 °C | -40 °C | Female Sockets Plug | Backshell | 20 A 25 A | Copper Alloy | 600 VAC | 0.413 in | 10.5 mm | 15 mm | 0.591 in | Screw | Lighting | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | Black | Plastic | ||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | B | Unshielded | Latch Lock Push-Pull | 3 | Free Hanging (In-Line) | 85 °C | -40 °C | Female Sockets Plug | Backshell | 20 A 25 A | Copper Alloy | 600 VAC | Screw | Lighting | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | Black | Plastic | 0.276 in 0.394 in 7 mm 10 mm | |||||||||||||
TE Connectivity Raychem Cable Protection | IP68 - Dust Tight Waterproof | Black | Free Hanging (In-Line) | 85 °C | -40 °C | Receptacle Housing for Pin Contact | 20 A | Copper Alloy | 600 V | Crimp | Tin | Cable/Wire to Cable/Wire | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | For Female Sockets | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | B | Contacts Not Included | Unshielded | Latch Lock | 3 | Screw | 85 °C | -40 °C | Plug Housing | Bulkhead - Rear Side Nut | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | IP68 - Dust Tight Waterproof | Black | Free Hanging (In-Line) | 85 °C | -40 °C | Receptacle Female Sockets | 25 A | Copper Alloy | 600 V | Crimp | Tin | Cable/Wire to Cable/Wire | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | For Male Pins | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | B | Contacts Not Included | Unshielded | Latch Lock | 3 | Crimp | 85 °C | -40 °C | Receptacle Housing | Bulkhead - Rear Side Nut | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | For Male Pins | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | B | Contacts Not Included | Unshielded | Latch Lock | 3 | Screw | 85 °C | -40 °C | Receptacle Housing | Bulkhead - Rear Side Nut | ||||||||||||||||||
TE Connectivity Raychem Cable Protection | For Female Sockets | Polybutylene Terephthalate (PBT) | Polycarbonate (PC) | Polybutylene Terephthalate (PBT) Polycarbonate (PC) | UL94 HF-1 UL94 V-0 | IP67/IP68 - Dust Tight Waterproof | Black | Circular | B | Contacts Not Included | Unshielded | Latch Lock | 3 | Free Hanging (In-Line) | Crimp | 85 °C | -40 °C | Plug Housing | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NECTOR T Series Series
Cable-to-Cable, 3 Position, Sealable, Wire & Cable, Plug, Housing, 600 VAC, 600 VDC, Power, NECTOR T Series, Plug & Socket Lighting Connectors
