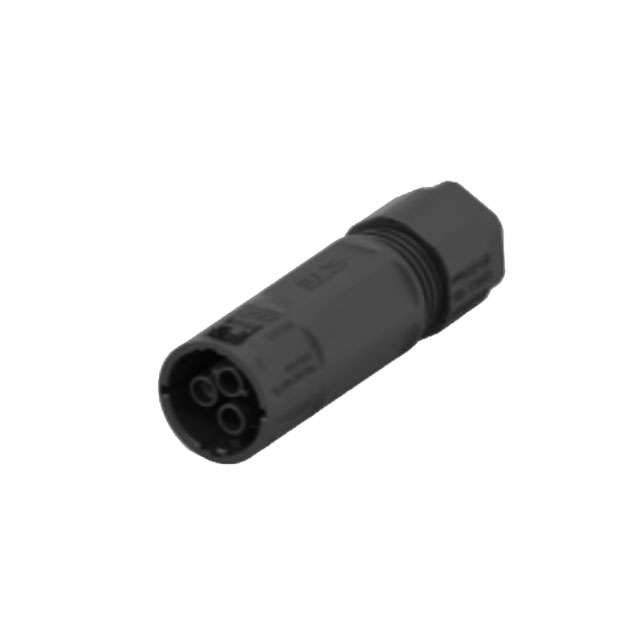

2379239-1

Active

TE Connectivity Raychem Cable Protection

NECTOR T, INLINE SOCKET, CRIMP, KEY-A,S1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UL_CERT_E193908_20210304_C1 +6

2379239-1

Active

TE Connectivity Raychem Cable Protection

NECTOR T, INLINE SOCKET, CRIMP, KEY-A,S1

Deep-Dive with AI

DocumentsDatasheet UL_CERT_E193908_20210304_C1 +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2379239-1

Connector Type	Receptacle, Female Sockets
Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating (Amps)	25 A
Housing Color	Black
Housing Material	Polycarbonate (PC), Polybutylene Terephthalate (PBT)
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Cable/Wire to Cable/Wire
Termination	Crimp
Voltage Rating	600 V

NECTOR T Series Series

Part	Type	Shell Material	Shell Material	Insert Material	Material Flammability Rating	Ingress Protection	Housing Color	Contact Shape	Orientation	Note	Shielding	Fastening Type	Number of Positions	Mounting Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Current Rating (Amps)	Contact Material	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Termination	Applications	Backshell Material, Plating	Color	Primary Material	Cable Opening [custom]	Contact Finish	Style	Housing Material	Mounting Feature
TE Connectivity Raychem Cable Protection 1-2379240-1	For Male Pins	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	A	Contacts Not Included	Unshielded	Latch Lock	3	Free Hanging (In-Line)	Crimp	85 °C	-40 °C	Receptacle Housing	Backshell
TE Connectivity Raychem Cable Protection 2379240-2	For Male Pins	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	B	Contacts Not Included	Unshielded	Latch Lock	3	Free Hanging (In-Line)	Crimp	85 °C	-40 °C	Receptacle Housing	Backshell
TE Connectivity Raychem Cable Protection 2379237-2		Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof			B		Unshielded	Latch Lock Push-Pull	3	Free Hanging (In-Line)		85 °C	-40 °C	Female Sockets Plug	Backshell	20 A 25 A	Copper Alloy	600 VAC	0.413 in	10.5 mm	15 mm	0.591 in	Screw	Lighting	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Black	Plastic
TE Connectivity Raychem Cable Protection 1-2379237-2		Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof			B		Unshielded	Latch Lock Push-Pull	3	Free Hanging (In-Line)		85 °C	-40 °C	Female Sockets Plug	Backshell	20 A 25 A	Copper Alloy	600 VAC					Screw	Lighting	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Black	Plastic	0.276 in 0.394 in 7 mm 10 mm
TE Connectivity Raychem Cable Protection 2379237-1						IP68 - Dust Tight Waterproof	Black							Free Hanging (In-Line)		85 °C	-40 °C	Receptacle Housing for Pin Contact		20 A	Copper Alloy	600 V					Crimp						Tin	Cable/Wire to Cable/Wire	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
TE Connectivity Raychem Cable Protection 2359422-2	For Female Sockets	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	B	Contacts Not Included	Unshielded	Latch Lock	3		Screw	85 °C	-40 °C	Plug Housing																		Bulkhead - Rear Side Nut
TE Connectivity Raychem Cable Protection 2379239-1						IP68 - Dust Tight Waterproof	Black							Free Hanging (In-Line)		85 °C	-40 °C	Receptacle Female Sockets		25 A	Copper Alloy	600 V					Crimp						Tin	Cable/Wire to Cable/Wire	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
TE Connectivity Raychem Cable Protection 1-2359518-2	For Male Pins	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	B	Contacts Not Included	Unshielded	Latch Lock	3		Crimp	85 °C	-40 °C	Receptacle Housing																		Bulkhead - Rear Side Nut
TE Connectivity Raychem Cable Protection 2359518-2	For Male Pins	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	B	Contacts Not Included	Unshielded	Latch Lock	3		Screw	85 °C	-40 °C	Receptacle Housing																		Bulkhead - Rear Side Nut
TE Connectivity Raychem Cable Protection 2379239-2	For Female Sockets	Polybutylene Terephthalate (PBT)	Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	UL94 HF-1 UL94 V-0	IP67/IP68 - Dust Tight Waterproof	Black	Circular	B	Contacts Not Included	Unshielded	Latch Lock	3	Free Hanging (In-Line)	Crimp	85 °C	-40 °C	Plug Housing	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.56
		10	$ 4.72
		25	$ 4.42
		50	$ 4.21
		200	$ 3.82

Description

General part information

NECTOR T Series Series

Cable-to-Cable, 3 Position, Sealable, Wire & Cable, Receptacle, Housing, 600 VAC, 600 VDC, Power, NECTOR T Series, Plug & Socket Lighting Connectors

Documents

Technical documentation and resources

Datasheet

2379239-1

Deep-Dive with AI

2379239-1

Deep-Dive with AI

Technical Specifications

NECTOR T Series Series

Pricing

Description

NECTOR T Series Series

Documents

Datasheet

UL_CERT_E193908_20210304_C1

INTERTEK_CERT_SE-S-2100505_C1 Nector T pluggable IEC61535

ENG_CD_2379239_A2.pdf

PRODUCT SPECIFICATION, NECTOR T 3Pos CONNECTOR

APPLICATION SPECIFICATION, NECTOR T 3Pos CONNECTOR

Datasheet

NECTOR T PLUGGABLE CONNECTORS

NECTOR T Series Series
