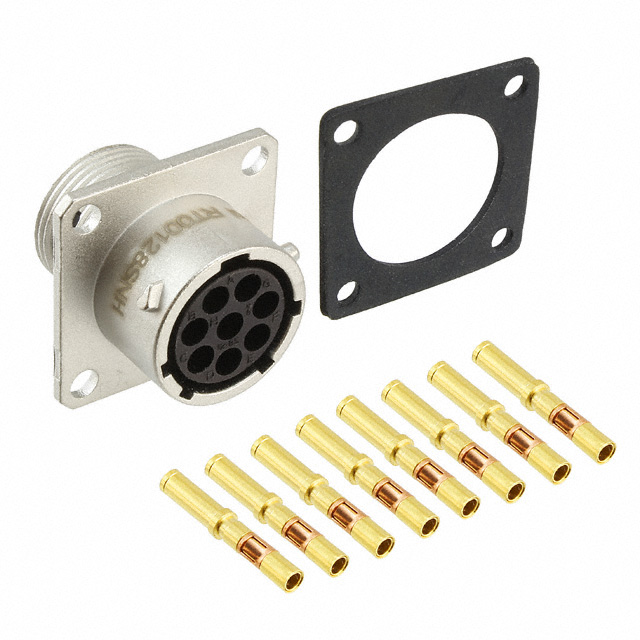

RT00128SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RM, RSSM, RM Flyer ecomate-Family-Flyer-2019 +1

RT00128SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate RM, RSSM, RM Flyer ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT00128SNH-K

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	12-8
Termination	Crimp
Voltage Rating	250 VAC

RT00128 Series

Part	Primary Material	Termination	Shell Finish	Mounting Feature	Number of Positions	Current Rating (Amps)	Ingress Protection	Connector Type	Voltage Rating	Shell Size - Insert	Contact Finish Thickness - Mating	Fastening Type	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish - Mating	Contact Shape	Contact Type	Housing Color	Note	Material Flammability Rating	Contact Size	Shielding	Features	Insert Material	Type	Applications	Contact Material
Amphenol Sine Systems Corp RT00128SNH-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold
Amphenol Sine Systems Corp RT00128SNHEC03R			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Female Sockets
Amphenol Sine Systems Corp RT00128PKNH03-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 IP69K	Male Pins Receptacle	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold					UL94 V-0		Shielded		Polyamide (PA66) Nylon 6/6		Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT00128SNHEC03	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Female Sockets
Amphenol Sine Systems Corp RT00128PNH-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 - Dust Tight Waterproof	Male Pins Receptacle	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold
Amphenol Sine Systems Corp RT00128PNHEC			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNHECR	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNHEC03R			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNH			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded		Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128SNHECR	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.23
		10	$ 13.54

Description

General part information

RT00128 Series

8 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

ecomate RM, RSSM, RM Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
