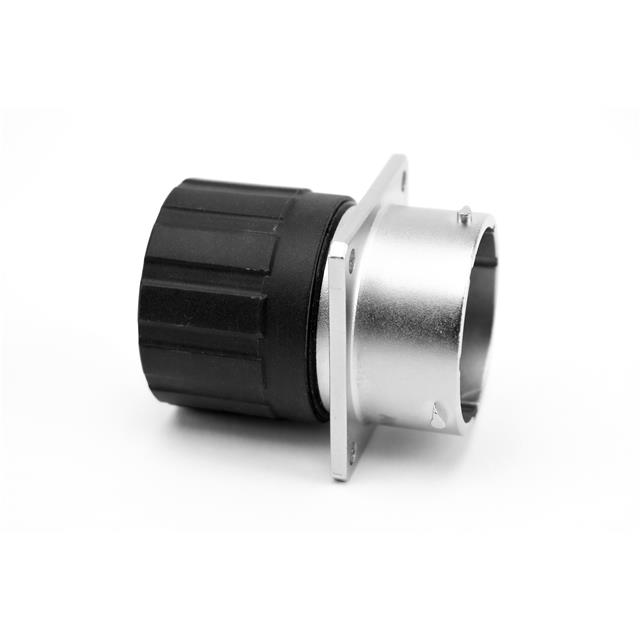

RT00128SNHEC03R

Active

Amphenol Sine Systems Corp

RECEPTACLE, SQUARE FLANGE, 8 POS

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

RT00128SNHEC03R

Active

Amphenol Sine Systems Corp

RECEPTACLE, SQUARE FLANGE, 8 POS

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT00128SNHEC03R

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12-8
Shielding	Shielded
Type	For Female Sockets

RT00128 Series

Part	Primary Material	Termination	Shell Finish	Mounting Feature	Number of Positions	Current Rating (Amps)	Ingress Protection	Connector Type	Voltage Rating	Shell Size - Insert	Contact Finish Thickness - Mating	Fastening Type	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish - Mating	Contact Shape	Contact Type	Housing Color	Note	Material Flammability Rating	Contact Size	Shielding	Features	Insert Material	Type	Applications	Contact Material
Amphenol Sine Systems Corp RT00128SNH-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold
Amphenol Sine Systems Corp RT00128SNHEC03R			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Female Sockets
Amphenol Sine Systems Corp RT00128PKNH03-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 IP69K	Male Pins Receptacle	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold					UL94 V-0		Shielded		Polyamide (PA66) Nylon 6/6		Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT00128SNHEC03	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Female Sockets
Amphenol Sine Systems Corp RT00128PNH-K	Metal	Crimp	Nickel	Flange	8	13 A	IP67 - Dust Tight Waterproof	Male Pins Receptacle	250 VAC	12-8	Flash	Bayonet Lock	N	Zinc Die Cast	-40 °C	105 ░C	Silver	Gold
Amphenol Sine Systems Corp RT00128PNHEC			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNHECR	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNHEC03R			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	125 °C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Backshell	Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128PNH			Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded		Thermoplastic	For Male Pins
Amphenol Sine Systems Corp RT00128SNHECR	Metal		Nickel	Flange	8		IP67 - Dust Tight Waterproof	Receptacle Housing		12-8		Bayonet Lock	N	Zinc Alloy	-40 °C	105 ░C			Circular	Crimp	Silver	Contacts Not Included	UL94 V-0	16	Shielded	Cap (Cover)	Thermoplastic	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.93
		10	$ 12.07
		25	$ 11.68

Description

General part information

RT00128 Series

8 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
