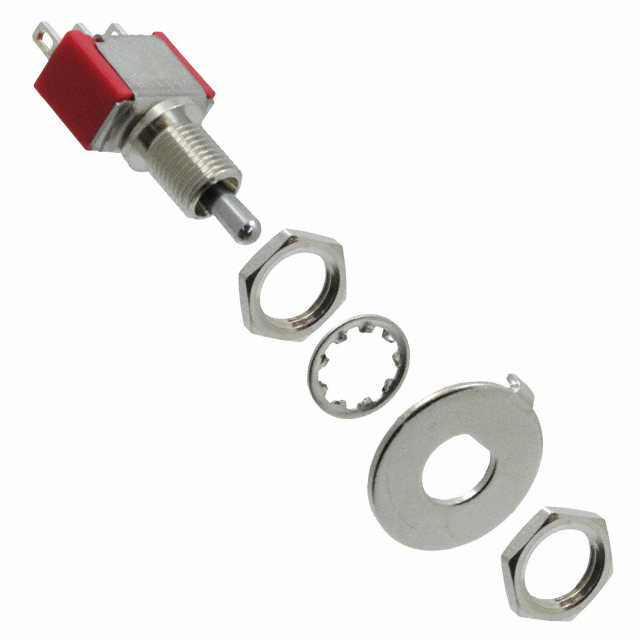

100SP5T2B5M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100SP5T2B5M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP5T2B5M1QEH	100SP5 Series

Actuator Length [x]	5.08 mm	5.08 - 17.98 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round
Bushing Thread	1/4-40	1/4-40, Unthreaded, M6 x 0.75, 15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-Off-Mom	On-Off-Mom, On-Mom
Termination Style	Solder Lug	Solder Lug, PC Pin
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100SP5 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Actuator Material	Actuator Type	Illumination	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Electrical Life	Bushing Thread	Actuator Length [x]	Switch Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
E-Switch 100SP5T6B11M1RE	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	12.29 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M6QEH	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	12.3 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount, Right Angle
E-Switch 100SP5T2B5M1QE	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M1QEH	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	12.3 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B4M6RE	0.4 VA	PC Pin	SPDT	20 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	20 V		40000 Cycles	Unthreaded	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C	Through Hole, Right Angle
E-Switch 100SP5T4B4VS2QE	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V		40000 Cycles	Unthreaded	16.26 mm	On-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T4B8M2QEH	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	6.5 mm	40000 Cycles	M6 x 0.75	16.26 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B5M1QEH	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B1M1REH	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M1REH	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	12.29 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.13
		10	$ 3.56
		25	$ 3.36
		40	$ 3.26
		80	$ 3.12
		230	$ 2.91
		440	$ 2.79
		945	$ 2.66

Description

General part information

100SP5 Series

Toggle Switch SPDT Panel Mount
