100SP5T4B4VS2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

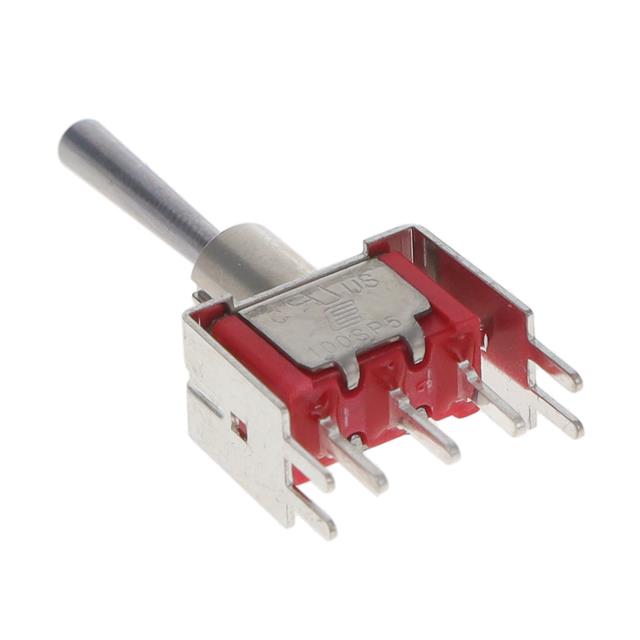

100SP5T4B4VS2QE

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.01
		10	$ 2.69
		25	$ 2.55
		50	$ 2.46
		180	$ 2.33
		360	$ 2.27

Description

General part information

100SP5 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP5T4B4VS2QE	100SP5 Series

Actuator Length [x]	16.26 mm	5.08 - 17.98 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round
Bushing Thread	Unthreaded	1/4-40, Unthreaded, M6 x 0.75, 15/32-32
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Right Angle, Panel Mount, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 in
Switch Function	On-Mom	On-Off-Mom, On-Mom
Termination Style	PC Pin	Solder Lug, PC Pin
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100SP5 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC	Actuator Material	Actuator Type	Illumination	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Electrical Life	Bushing Thread	Actuator Length [x]	Switch Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
E-Switch 100SP5T6B11M1RE	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	12.29 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M6QEH	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	12.3 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C	Panel Mount, Right Angle
E-Switch 100SP5T2B5M1QE	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M1QEH	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	12.3 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B4M6RE	0.4 VA	PC Pin	SPDT	20 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	20 V		40000 Cycles	Unthreaded	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C	Through Hole, Right Angle
E-Switch 100SP5T4B4VS2QE	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V		40000 Cycles	Unthreaded	16.26 mm	On-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T4B8M2QEH	5 A	PC Pin	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	6.5 mm	40000 Cycles	M6 x 0.75	16.26 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B5M1QEH	5 A	Solder Lug	SPDT	28 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	120 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T2B1M1REH	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Standard Round	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	5.08 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
E-Switch 100SP5T6B11M1REH	0.4 VA	Solder Lug	SPDT	20 V	Brass, Chrome Plated	Flat Anti-Rotation	Non-Illuminated	20 V	0.25 in	40000 Cycles	1/4-40	12.29 mm	On-Off-Mom	Epoxy Sealed Terminals	-30 ░C	85 °C
