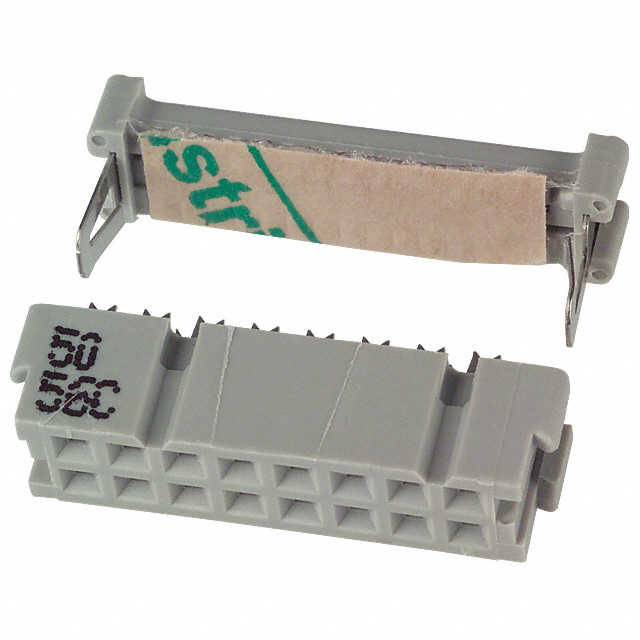

3452-6000

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Contact Type	Number of Rows	Wire Type	Color	Mounting Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3452-6616	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief
3M (TC) 3452-H600	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Polarizing Key	26 AWG	28 AWG	Solid Stranded
3M (TC) 3452-6000	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through
3M (TC) 3452-6016	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Strain Relief
3M (TC) 3452-7616	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Closed End Polarizing Key Strain Relief
3M (TC) 3452-7000	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Closed End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
