3452-6616

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3452-6616

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3452-6616

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3452 Series

Part	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Contact Type	Number of Rows	Wire Type	Color	Mounting Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3452-6616	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Polarizing Key Strain Relief
3M (TC) 3452-H600	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Polarizing Key	26 AWG	28 AWG	Solid Stranded
3M (TC) 3452-6000	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through
3M (TC) 3452-6016	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Feed Through Strain Relief
3M (TC) 3452-7616	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Closed End Polarizing Key Strain Relief
3M (TC) 3452-7000	Receptacle	2.54 mm	0.1 in	Gold	0.1 in	2.54 mm	0.76 Ám	30 Áin	16	IDC	Female Socket	2	Ribbon Cable	Gray	Free Hanging (In-Line)	Closed End

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96
		10	$ 4.50
		25	$ 4.27
		50	$ 4.17
		100	$ 3.97
		300	$ 3.47
		600	$ 3.37
		1200	$ 2.88
		2700	$ 2.68
Newark	Each	1	$ 4.83
		10	$ 4.63
		25	$ 4.27
		50	$ 4.03
		100	$ 3.85
		250	$ 3.40
		500	$ 3.30
		1000	$ 2.80

Description

General part information

3452 Series

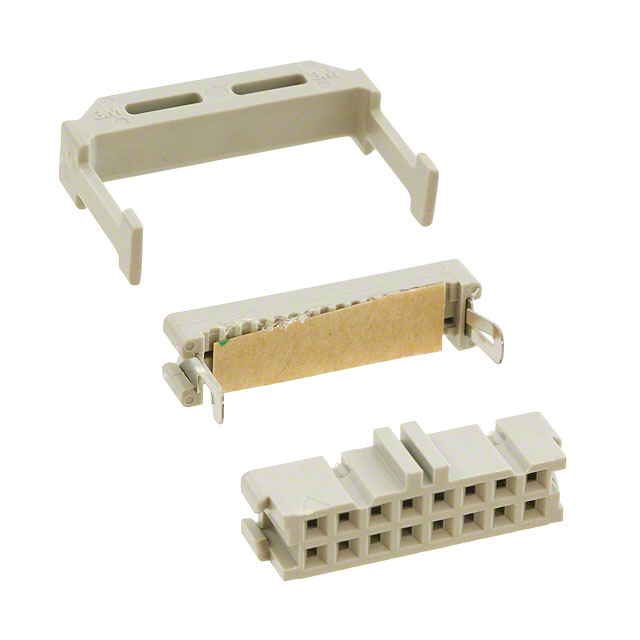

The 3452-6616 is a 16-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with center bump and 16-contacts for plastic strain relief. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
