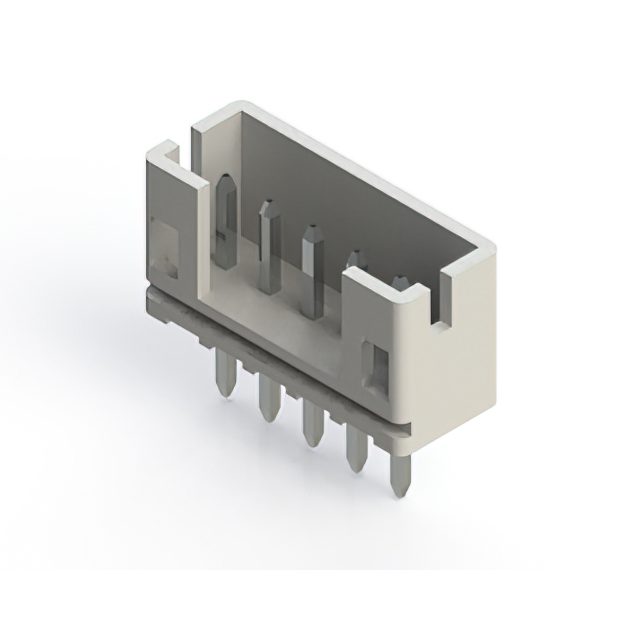

140-505-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 5 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-505-415-101

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 5 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-505-415-101	140-505 Series

Color	-	Natural
Connector Type	Header	Receptacle, Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.134 in
Contact Length - Post	-	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.24 in	0.185 - 0.24 in
Insulation Height	6.1 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Free Hanging (In-Line), Surface Mount, Through Hole, Surface Mount, Right Angle, Through Hole, Right Angle
Note	-	Contacts Not Included
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-505 Series

CONN RCPT HSG 5POS 2.00MM

Part	Contact Termination	Mounting Type	Color	Pitch [x]	Pitch [x]	Contact Type	Features	Note	Number of Rows	Insulation Material	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Style	Contact Shape	Shrouding	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Insulation Color	Voltage Rating	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
EDAC Inc. 140-505-210-011	Crimp	Free Hanging (In-Line)	Natural	0.079 in	2 mm	Female Socket	Polarizing Key	Contacts Not Included	1	Polyamide (PA66), Nylon 6/6	Detent Lock	Receptacle	-25 °C	85 °C
EDAC Inc. 140-505-417-011		Surface Mount				Male Pin	Solder Retention		1	Liquid Crystal Polymer (LCP)	Detent Lock	Header	-40 °C	105 ░C	Brass	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Solder	0.079 in	2 mm	2 A	5.51 mm	0.217 in	Natural	100 VAC	All	UL94 V-0
EDAC Inc. 140-505-415-001		Through Hole				Male Pin			1	Polyamide (PA66), Nylon 6/6	Detent Lock	Header	-40 °C	105 ░C	Brass	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Kinked Pin, Solder	0.079 in	2 mm	2 A			Natural	100 VAC	All	UL94 V-0	0.134 in	3.4 mm	0.24 in	6.1 mm
EDAC Inc. 140-505-417-060		Surface Mount, Right Angle				Male Pin	Solder Retention		1	Nylon 9T, Polyamide (PA9T)	Detent Lock	Header	-25 °C	85 °C	Brass	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Solder	0.079 in	2 mm	2 A	5.51 mm	0.217 in	Natural	100 VAC	All	UL94 V-0
EDAC Inc. 140-505-415-101		Through Hole				Male Pin			1	Polyamide (PA66), Nylon 6/6	Detent Lock	Header	-40 °C	105 ░C	Brass	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Solder	0.079 in	2 mm	2 A			Natural	100 VAC	All	UL94 V-0			0.24 in	6.1 mm
EDAC Inc. 140-505-415-100		Through Hole, Right Angle				Male Pin			1	Polyamide (PA66), Nylon 6/6	Detent Lock	Header	-40 °C	105 ░C	Brass	Tin	Board to Cable/Wire	Square	Shrouded - 4 Wall	Solder	0.079 in	2 mm	2 A			Natural	100 VAC	All	UL94 V-0	0.134 in	3.4 mm	0.185 in	4.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.11

Description

General part information

140-505 Series

Connector Header Through Hole 5 position 0.079" (2.00mm)
