140-505-417-011
ActiveEDAC Inc.

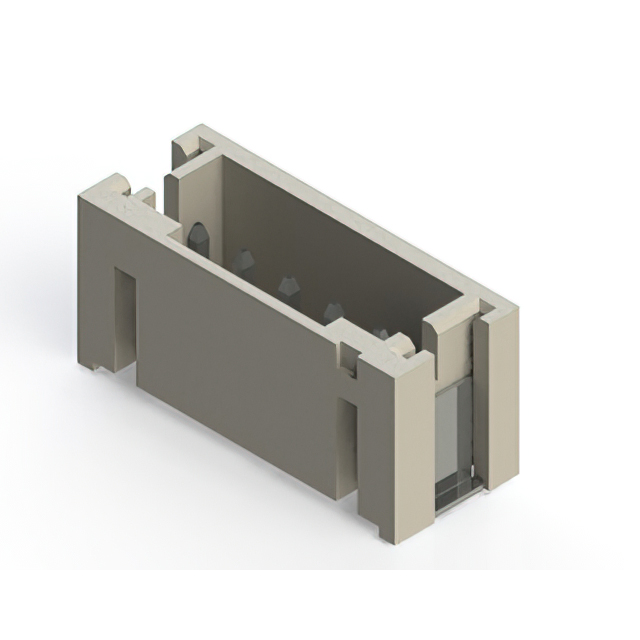

CONN, HEADER, 5POS, 1ROW, 2MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140-505-417-011
ActiveEDAC Inc.
CONN, HEADER, 5POS, 1ROW, 2MM, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140-505-417-011 | 140-505 Series |
|---|---|---|
| Color | - | Natural |
| Connector Type | Header | Receptacle, Header |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | - | 0.134 in |
| Contact Length - Post | - | 3.4 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Termination | - | Crimp |
| Contact Type | Male Pin | Female Socket, Male Pin |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Detent Lock | Detent Lock |
| Features | Solder Retention | Polarizing Key, Solder Retention |
| Insulation Color | Natural | Natural |
| Insulation Height | - | 0.185 - 0.24 in |
| Insulation Height | - | 4.7 - 6.1 mm |
| Insulation Height [custom] | 5.51 mm | 5.51 mm |
| Insulation Height [custom] | 0.217 in | 0.217 in |
| Insulation Material | Liquid Crystal Polymer (LCP) | Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Free Hanging (In-Line), Surface Mount, Through Hole, Surface Mount, Right Angle, Through Hole, Right Angle |
| Note | - | Contacts Not Included |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Pitch | - | 0.079 in |
| Pitch | - | 2 mm |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder, Kinked Pin, Solder |
| Voltage Rating | 100 VAC | 100 VAC |
140-505 Series
CONN RCPT HSG 5POS 2.00MM
| Part | Contact Termination | Mounting Type | Color | Pitch [x] | Pitch [x] | Contact Type | Features | Note | Number of Rows | Insulation Material | Fastening Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish - Post | Style | Contact Shape | Shrouding | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Current Rating (Amps) | Insulation Height [custom] | Insulation Height [custom] | Insulation Color | Voltage Rating | Number of Positions Loaded | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. 140-505-210-011 | Crimp | Free Hanging (In-Line) | Natural | 0.079 in | 2 mm | Female Socket | Polarizing Key | Contacts Not Included | 1 | Polyamide (PA66), Nylon 6/6 | Detent Lock | Receptacle | -25 °C | 85 °C | |||||||||||||||||||
EDAC Inc. 140-505-417-011 | Surface Mount | Male Pin | Solder Retention | 1 | Liquid Crystal Polymer (LCP) | Detent Lock | Header | -40 °C | 105 ░C | Brass | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Solder | 0.079 in | 2 mm | 2 A | 5.51 mm | 0.217 in | Natural | 100 VAC | All | UL94 V-0 | |||||||||
EDAC Inc. 140-505-415-001 | Through Hole | Male Pin | 1 | Polyamide (PA66), Nylon 6/6 | Detent Lock | Header | -40 °C | 105 ░C | Brass | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Kinked Pin, Solder | 0.079 in | 2 mm | 2 A | Natural | 100 VAC | All | UL94 V-0 | 0.134 in | 3.4 mm | 0.24 in | 6.1 mm | ||||||||
EDAC Inc. 140-505-417-060 | Surface Mount, Right Angle | Male Pin | Solder Retention | 1 | Nylon 9T, Polyamide (PA9T) | Detent Lock | Header | -25 °C | 85 °C | Brass | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Solder | 0.079 in | 2 mm | 2 A | 5.51 mm | 0.217 in | Natural | 100 VAC | All | UL94 V-0 | |||||||||
EDAC Inc. 140-505-415-101 | Through Hole | Male Pin | 1 | Polyamide (PA66), Nylon 6/6 | Detent Lock | Header | -40 °C | 105 ░C | Brass | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Solder | 0.079 in | 2 mm | 2 A | Natural | 100 VAC | All | UL94 V-0 | 0.24 in | 6.1 mm | ||||||||||
EDAC Inc. 140-505-415-100 | Through Hole, Right Angle | Male Pin | 1 | Polyamide (PA66), Nylon 6/6 | Detent Lock | Header | -40 °C | 105 ░C | Brass | Tin | Board to Cable/Wire | Square | Shrouded - 4 Wall | Solder | 0.079 in | 2 mm | 2 A | Natural | 100 VAC | All | UL94 V-0 | 0.134 in | 3.4 mm | 0.185 in | 4.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.56 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| Tape & Reel (TR) | 700 | $ 0.40 | ||
| 1400 | $ 0.33 | |||
| 2100 | $ 0.32 | |||
| 3500 | $ 0.30 | |||
| 4900 | $ 0.29 | |||
| 17500 | $ 0.27 | |||
| 35000 | $ 0.26 | |||
| Newark | Each (Supplied on Cut Tape) | 10 | $ 0.83 | |
| 25 | $ 0.72 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.56 | |||
| 2500 | $ 0.52 | |||
Description
General part information
140-505 Series
Connector Header Surface Mount 5 position 0.079" (2.00mm)
