UF15PC12/23-BWHR

Active

Mechatronics Fan Group

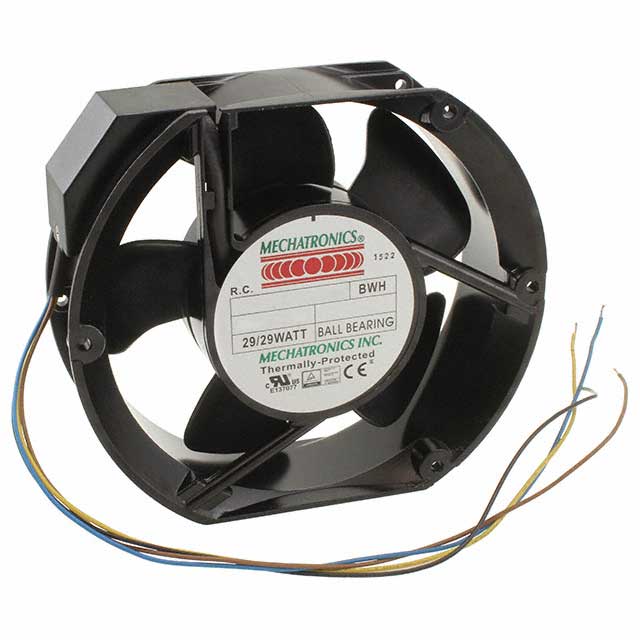

FAN 172X150X51MM 115/230VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInstallation Instructions AC/DC Fans & Blowers Catalog +1

UF15PC12/23-BWHR

Active

Mechatronics Fan Group

FAN 172X150X51MM 115/230VAC

Deep-Dive with AI

DocumentsInstallation Instructions AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.03
		20	$ 47.52
		40	$ 45.72
		60	$ 42.71
		100	$ 39.40

Description

General part information

UF15P Series

Fan Tubeaxial 115/230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Installation Instructions

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	UF15PC12/23-BWHR	UF15P Series

Air Flow	226 CFM	106 - 226 CFM
Air Flow	6.33 m³/min	2.97 - 6.33 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, TUV, CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.25 - 150 mA
Current Rating (Amps) [Max]	0.25 A	0.25 A
Current Rating (Amps) [Min]	0.12 A	0.12 A
Fan Type	Tubeaxial	Tubeaxial
Features	Dual Voltage, Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Dual Voltage, Conformal Coating, Salt Fog Rated
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	58 dB(A)	37 - 58 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	29 W, 31 W	29 - 31 W
RPM	3400 RPM	1700 - 3400 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	196.8 Pa	54.8 - 196.8 Pa
Static Pressure	0.79 in H2O	0.22 - 0.79 in H2O
Termination	4 Wire Leads	2 Wire Leads, 2 Terminals, 4 Wire Leads
Voltage - Rated	-	115 - 230 VAC
Voltage - Rated [Max]	230 VAC	230 VAC
Voltage - Rated [Min]	115 VAC	115 VAC
Weight	816.5 g	816.5 g
Weight	1.8 lbs	1.8 lbs
Width [y]	51 mm	51 mm

Part

Size / Dimension

Size / Dimension [z]

Size / Dimension [x]

Air Flow

Termination

Operating Temperature [Max]

Operating Temperature [Min]

Width [y]

Material - Frame

Bearing Type

Noise

RPM

Static Pressure

Approval Agency

Voltage - Rated

Fan Type

Current Rating (Amps)

Weight

Features

Material - Blade

Voltage - Rated [Max]

Voltage - Rated [Min]

Current Rating (Amps) [Max]

Current Rating (Amps) [Min]

Power (Watts)

Ingress Protection

Mechatronics Fan Group

UF15PE23-BWHR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Wire Leads

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, TUV

230 VAC

Tubeaxial

120 mA

816.5 g

1.8 lbs

Mechatronics Fan Group

UF15PC12-BTMR

Rectangular/Rounded

150 mm

172 mm

2 Terminals

70 °C

-40 °C

51 mm

Aluminum

Ball

CE, cUL, TUV, UL

115 VAC

Tubeaxial

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF15PC12/23-BWHR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

4 Wire Leads

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

Tubeaxial

816.5 g

1.8 lbs

Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

230 VAC

115 VAC

0.25 A

0.12 A

29 W, 31 W

Mechatronics Fan Group

UF15PC12-BTHNR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Terminals

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

115 VAC

Tubeaxial

0.25 A

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF15PE23-BWHNR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Wire Leads

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, TUV

230 VAC

Tubeaxial

120 mA

816.5 g

1.8 lbs

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF15PC12-BTHR-CC

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Terminals

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

115 VAC

Tubeaxial

0.25 A

816.5 g

1.8 lbs

Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

Mechatronics Fan Group

UF15PC23-BTLR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Terminals

70 °C

-40 °C

51 mm

Aluminum

Ball

37 dB

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

230 VAC

Tubeaxial

120 mA

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

Mechatronics Fan Group

UF15PC23-BWHR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Wire Leads

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

230 VAC

Tubeaxial

120 mA

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

Mechatronics Fan Group

UF15PC23-BTHNSR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Terminals

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

230 VAC

Tubeaxial

120 mA

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF15PC12-BWHR

Rectangular/Rounded

150 mm

172 mm

226 CFM

6.33 m³/min

2 Wire Leads

70 °C

-40 °C

51 mm

Aluminum

Ball

58 dB(A)

3400 RPM

196.8 Pa

0.79 in H2O

CE, cUL, TUV, UL

115 VAC

Tubeaxial

0.25 A

816.5 g

1.8 lbs

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Polybutylene Terephthalate (PBT)

31 W

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Material - Frame	Bearing Type	Noise	RPM	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Fan Type	Current Rating (Amps)	Weight	Weight	Features	Material - Blade	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Power (Watts)	Ingress Protection
Mechatronics Fan Group UF15PE23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, TUV	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs
Mechatronics Fan Group UF15PC12-BTMR	Rectangular/Rounded	150 mm	172 mm			2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball					CE, cUL, TUV, UL	115 VAC	Tubeaxial		816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF15PC12/23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	4 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL		Tubeaxial		816.5 g	1.8 lbs	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	230 VAC	115 VAC	0.25 A	0.12 A	29 W, 31 W
Mechatronics Fan Group UF15PC12-BTHNR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PE23-BWHNR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, TUV	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs								IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PC12-BTHR-CC	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BTLR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	37 dB	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BTHNSR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PC12-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
