UF15PC12-BTHR-CC

Active

Mechatronics Fan Group

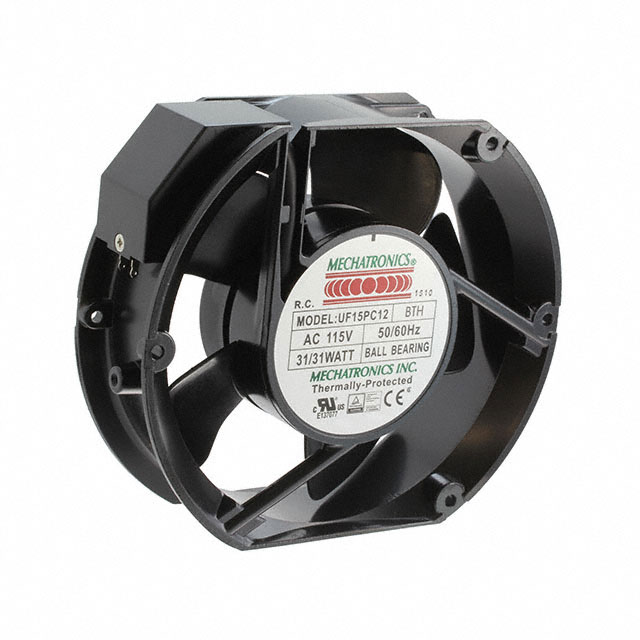

FAN AXIAL 172X150X51MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF15PC12-BTHR-CC

Active

Mechatronics Fan Group

FAN AXIAL 172X150X51MM 115VAC

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	21	$ 44.96

Description

General part information

UF15P Series

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 226.0 CFM (6.33m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF15PC12-BTHR-CC	UF15P Series

Air Flow	226 CFM	106 - 226 CFM
Air Flow	6.33 m³/min	2.97 - 6.33 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, TUV, CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.25 A	0.25 - 150 mA
Current Rating (Amps)	-	0.25 A
Current Rating (Amps)	-	0.12 A
Fan Type	Tubeaxial	Tubeaxial
Features	Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Dual Voltage, Conformal Coating, Salt Fog Rated
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	58 dB(A)	37 - 58 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	31 W	29 - 31 W
RPM	3400 RPM	1700 - 3400 RPM
Size / Dimension	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [z]	150 mm	150 mm
Static Pressure	196.8 Pa	54.8 - 196.8 Pa
Static Pressure	0.79 in H2O	0.22 - 0.79 in H2O
Termination	2 Terminals	2 Wire Leads, 2 Terminals, 4 Wire Leads
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	816.5 g	816.5 g
Weight	1.8 lbs	1.8 lbs
Width [y]	51 mm	51 mm

UF15P Series

FAN AXIAL 172X51MM 230VAC WIRE

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Material - Frame	Bearing Type	Noise	RPM	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Fan Type	Current Rating (Amps)	Weight	Weight	Features	Material - Blade	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Power (Watts)	Ingress Protection
Mechatronics Fan Group UF15PE23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, TUV	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs
Mechatronics Fan Group UF15PC12-BTMR	Rectangular/Rounded	150 mm	172 mm			2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball					CE, cUL, TUV, UL	115 VAC	Tubeaxial		816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF15PC12/23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	4 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL		Tubeaxial		816.5 g	1.8 lbs	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	230 VAC	115 VAC	0.25 A	0.12 A	29 W, 31 W
Mechatronics Fan Group UF15PC12-BTHNR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PE23-BWHNR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, TUV	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs								IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PC12-BTHR-CC	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BTLR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	37 dB	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
Mechatronics Fan Group UF15PC23-BTHNSR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Terminals	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	230 VAC	Tubeaxial	120 mA	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF15PC12-BWHR	Rectangular/Rounded	150 mm	172 mm	226 CFM	6.33 m³/min	2 Wire Leads	70 °C	70 °C	-40 °C	-40 °C	51 mm	Aluminum	Ball	58 dB(A)	3400 RPM	196.8 Pa	0.79 in H2O	CE, cUL, TUV, UL	115 VAC	Tubeaxial	0.25 A	816.5 g	1.8 lbs	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)					31 W
