3-1825138-3
ActiveTE Connectivity Raychem Cable Protection

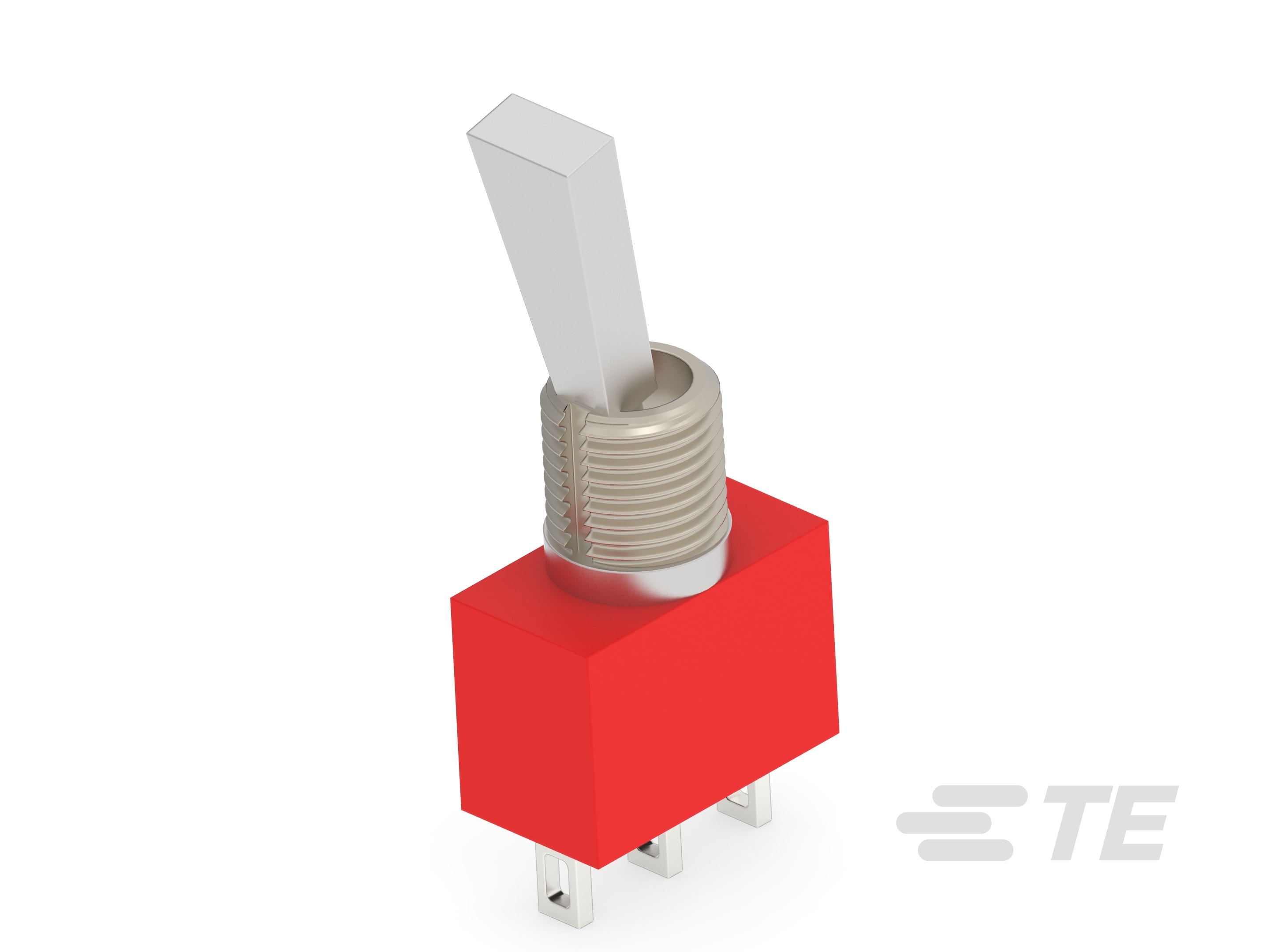

SWITCH TOGGLE DPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
3-1825138-3
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE DPDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1825138-3 |
|---|---|
| Actuator Length [x] | 12.29 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Flatted |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 6000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
ALCOSWITCH Gemini A Series
| Part | Actuator Type | Electrical Life | Termination Style | Actuator Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Circuit | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Illumination | Features | Bushing Thread | Mounting Type | Actuator Length [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Flatted | 6000 Cycles | Solder Lug | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-Mom | 12.29 mm | 0.25 in | Non-Illuminated | Epoxy Sealed Terminals | 1/4-40 | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | PC Pin | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | 12.19 mm | Non-Illuminated | Epoxy Sealed Terminals | Unthreaded | Right Angle Through Hole Vertical | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | PC Pin | Brass Nickel Plated | -30 ░C | 85 °C | 20 V | DPDT | 20 V | 0.4 VA | On-On | Non-Illuminated | Epoxy Sealed Terminals | Unthreaded | Right Angle Through Hole Vertical | 6.86 mm | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | Solder Lug | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | 10.41 mm | 0.25 in | Non-Illuminated | Epoxy Sealed Terminals | 1/4-40 | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | Solder Lug | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | 5.08 mm | 0.25 in | Non-Illuminated | Epoxy Sealed Terminals | 1/4-40 | ||
TE Connectivity Raychem Cable Protection | Locking Lever | 6000 Cycles | PC Pin | Brass Nickel Plated | -30 ░C | 85 °C | 20 V | DPDT | 20 V | 0.4 VA | On-On | 16.51 mm | 0.25 in | Non-Illuminated | Epoxy Sealed Terminals | 1/4-40 | Panel Mount Right Angle | |
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | PC Pin | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | 12.19 mm | Non-Illuminated | Epoxy Sealed Terminals | Unthreaded | Through Hole Right Angle | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | Wire Wrap | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | 10.41 mm | 0.25 in | Non-Illuminated | Epoxy Sealed Terminals | 1/4-40 | ||
TE Connectivity Raychem Cable Protection | Standard Round | 6000 Cycles | PC Pin | Brass Nickel Plated | -30 ░C | 85 °C | 120 V | DPDT | 28 V | 5 A | On-On | Non-Illuminated | Epoxy Sealed Terminals | Unthreaded | Right Angle Through Hole Vertical | 6.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 4.08 | |
Description
General part information
ALCOSWITCH Gemini A Series
Toggle Switch DPDT Panel Mount
