2-1825138-8

Active

TE Connectivity Raychem Cable Protection

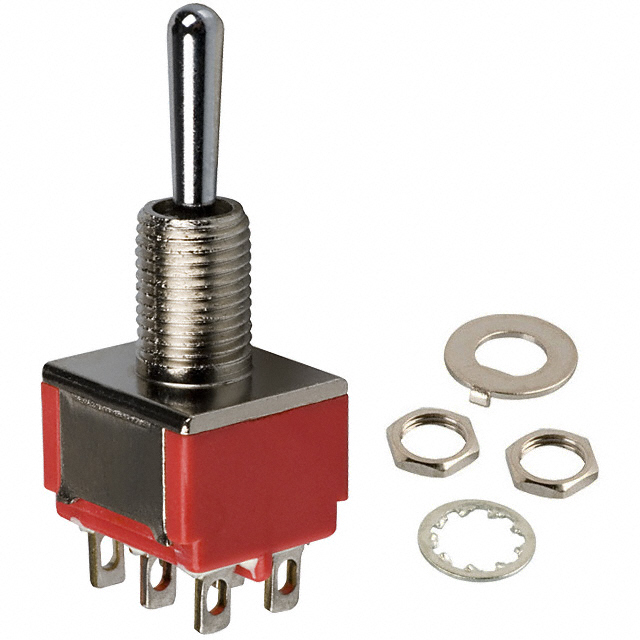

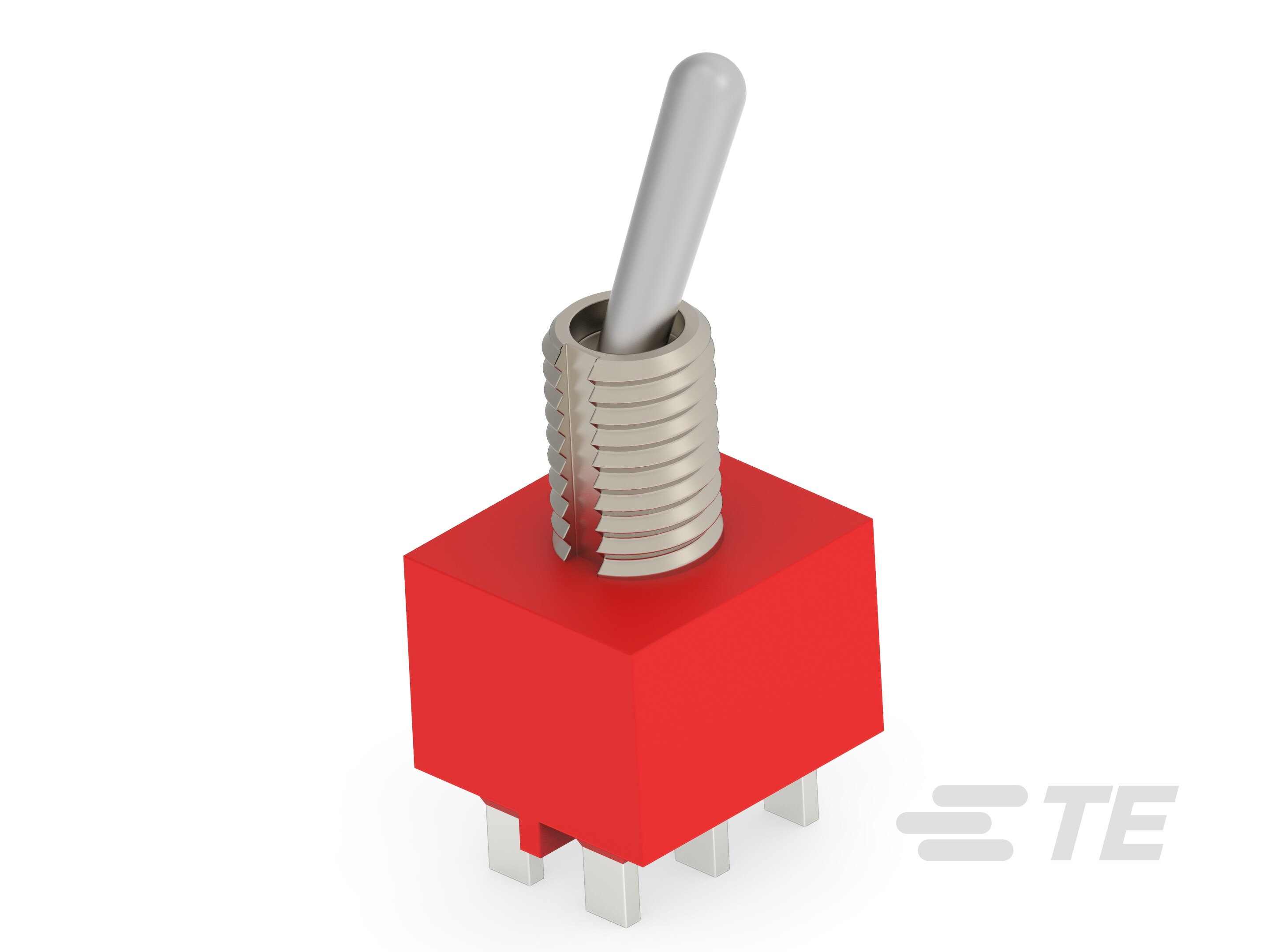

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1825138-8

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1825138-8

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

ALCOSWITCH Gemini A Series

Part	Actuator Type	Electrical Life	Termination Style	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Circuit	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Illumination	Features	Bushing Thread	Mounting Type	Actuator Length [custom]
TE Connectivity Raychem Cable Protection 3-1825138-3	Flatted	6000 Cycles	Solder Lug	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-Mom	12.29 mm	0.25 in	Non-Illuminated	Epoxy Sealed Terminals	1/4-40
TE Connectivity Raychem Cable Protection 1-1825138-8	Standard Round	6000 Cycles	PC Pin	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On	12.19 mm		Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Right Angle Through Hole Vertical
TE Connectivity Raychem Cable Protection 1825138-8	Standard Round	6000 Cycles	PC Pin	Brass Nickel Plated	-30 ░C	85 °C	20 V	DPDT	20 V	0.4 VA	On-On			Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Right Angle Through Hole Vertical	6.86 mm
TE Connectivity Raychem Cable Protection 2-1825138-8	Standard Round	6000 Cycles	Solder Lug	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On	10.41 mm	0.25 in	Non-Illuminated	Epoxy Sealed Terminals	1/4-40
TE Connectivity Raychem Cable Protection 1-1825138-4	Standard Round	6000 Cycles	Solder Lug	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On	5.08 mm	0.25 in	Non-Illuminated	Epoxy Sealed Terminals	1/4-40
TE Connectivity Raychem Cable Protection 1825138-1	Locking Lever	6000 Cycles	PC Pin	Brass Nickel Plated	-30 ░C	85 °C	20 V	DPDT	20 V	0.4 VA	On-On	16.51 mm	0.25 in	Non-Illuminated	Epoxy Sealed Terminals	1/4-40	Panel Mount Right Angle
TE Connectivity Raychem Cable Protection 1-1825138-7	Standard Round	6000 Cycles	PC Pin	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On	12.19 mm		Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 2-1825138-6	Standard Round	6000 Cycles	Wire Wrap	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On	10.41 mm	0.25 in	Non-Illuminated	Epoxy Sealed Terminals	1/4-40
TE Connectivity Raychem Cable Protection 1825138-9	Standard Round	6000 Cycles	PC Pin	Brass Nickel Plated	-30 ░C	85 °C	120 V	DPDT	28 V	5 A	On-On			Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	Right Angle Through Hole Vertical	6.86 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.75
		10	$ 4.10
		25	$ 3.87
		50	$ 3.70
		100	$ 3.54
		250	$ 3.34
		500	$ 3.19
		1000	$ 3.05

Description

General part information

ALCOSWITCH Gemini A Series

Toggle Switch DPDT Panel Mount
