395-080-542-578

Active

EDAC Inc.

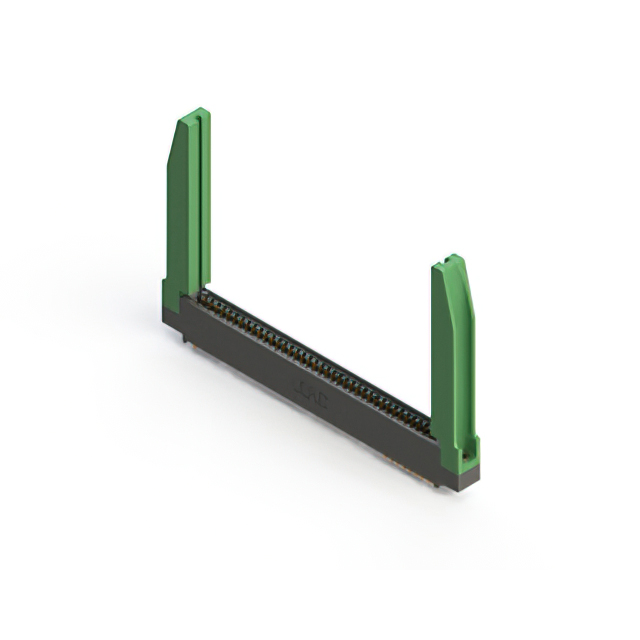

2.54MM STRAIGHT 80P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-080-542-578

Active

EDAC Inc.

2.54MM STRAIGHT 80P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-080-542-578

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

395-080 Series

...

Part	Card Type	Pitch [x]	Pitch [x]	Material - Insulation	Termination	Contact Finish	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Contact Type	Number of Positions/Bay/Row [custom]	Number of Rows	Flange Feature	Color	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 395-080-560-258	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2
EDAC Inc. 395-080-560-807	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	M3 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender
EDAC Inc. 395-080-523-288	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides
EDAC Inc. 395-080-541-578	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Wire Wrap	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides
EDAC Inc. 395-080-525-804	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	Top Mount Opening Unthreaded	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2		0.156 in	3.96 mm
EDAC Inc. 395-080-556-204	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	Flush Mount Top Opening Unthreaded	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender	0.156 in	3.96 mm
EDAC Inc. 395-080-542-578	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Wire Wrap	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	10 Áin	0.25 Ám	2	Card Guides
EDAC Inc. 395-080-556-208	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender
EDAC Inc. 395-080-560-288	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	4-40 Flush Mount Threaded Insert Top Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2
EDAC Inc. 395-080-556-507	Non Specified - Dual Edge	2.54 mm	0.1 in	Polyester Thermoplastic	Solder	Gold	Dual	-40 °C	105 ░C	Copper Alloy	80	Cantilever	40	2	M3 Threaded Insert Top Mount Opening	Black	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.86
LCSC	Piece	1	$ 16.11
		200	$ 6.24
		500	$ 6.02
		1000	$ 5.91

Description

General part information

395-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
