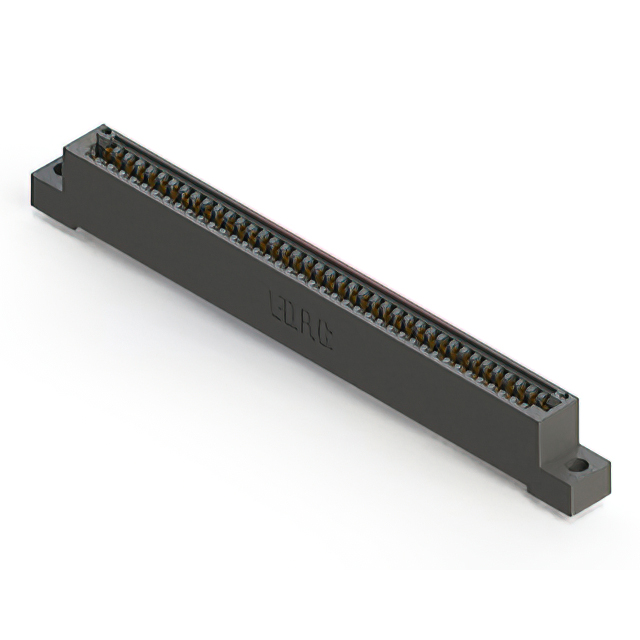

395-080-556-204
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-080-556-204
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-080-556-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-080 Series
...
| Part | Card Type | Pitch [x] | Pitch [x] | Material - Insulation | Termination | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Contact Type | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature | Color | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | M3 Threaded Insert Top Mount Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | 2 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Wire Wrap | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Threaded Insert Top Mount Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | 2 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | Top Mount Opening Unthreaded | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | 2 | 0.156 in | 3.96 mm | |
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | Flush Mount Top Opening Unthreaded | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | Card Extender | 0.156 in | 3.96 mm |
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Wire Wrap | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Threaded Insert Top Mount Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | 2 | Card Guides | ||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | |||
EDAC Inc. | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Polyester Thermoplastic | Solder | Gold | Dual | -40 °C | 105 ░C | Copper Alloy | 80 | Cantilever | 40 | 2 | M3 Threaded Insert Top Mount Opening | Black | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-080 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
