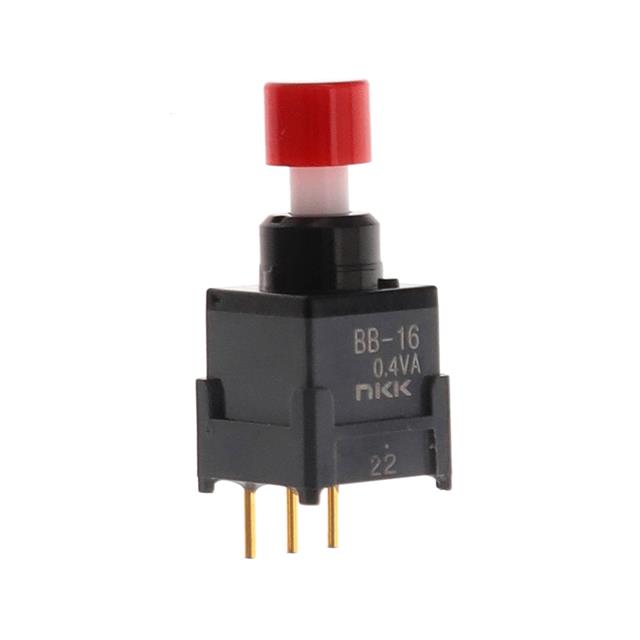

BB16AP-FC

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Circuit	Current Rating (Amps)	Termination Style	Electrical Life	Color - Actuator/Cap	Mechanical Life	Type	Voltage Rating - AC	Voltage Rating - DC
NKK Switches BB16AP-FB	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	White	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-HA	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Black	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-FA	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Black	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-HB	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	White	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-FC	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Red	25000 Steps	Standard	28 V	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
