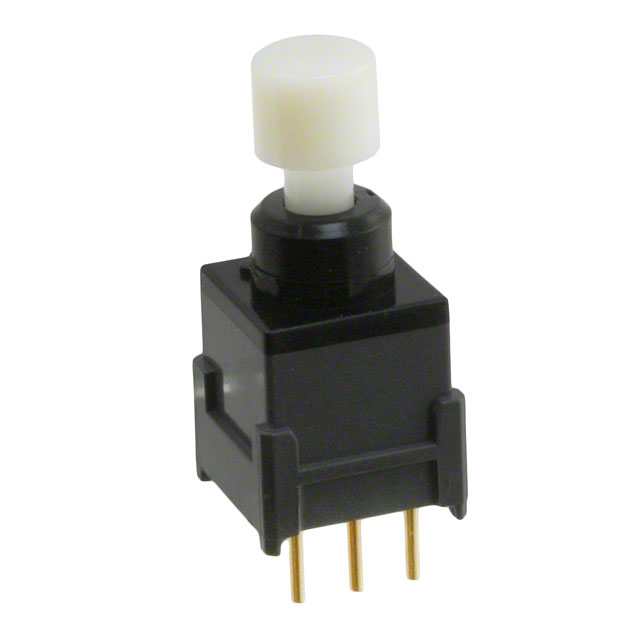

BB16AP-FB

Active

NKK Switches

SWITCH PUSH BUTTON ON ON SPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA ALTERNATE THRU-HOLE PC PINS

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH BUTTON ON ON SPDT ROUND PLUNGER 0.1A 28VAC 28VDC 0.4VA ALTERNATE THRU-HOLE PC PINS

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Circuit	Current Rating (Amps)	Termination Style	Electrical Life	Color - Actuator/Cap	Mechanical Life	Type	Voltage Rating - AC	Voltage Rating - DC
NKK Switches BB16AP-FB	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	White	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-HA	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Black	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-FA	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Black	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-HB	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	White	25000 Steps	Standard	28 V	28 V
NKK Switches BB16AP-FC	On-On	No Marking	Button Round	-30 ░C	85 °C	Through Hole	Antistatic	SPDT	0.4 VA	PC Pin	25000 Steps	Red	25000 Steps	Standard	28 V	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
