Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB16SKG01-6F-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB16SKG01 Series

Part	Current Rating (Amps)	Electrical Life	Type	Circuit	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Switch Function	Actuator Marking	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB16SKG01-H	0.4 VA	100000 Cycles	Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	70 °C	-25 °C	200000 Cycles	Button Square
NKK Switches LB16SKG01-C	0.4 VA	100000 Cycles	Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	70 °C	-25 °C	200000 Cycles	Button Square	Red
NKK Switches LB16SKG01-5C-JC	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear (Red Filter/Diffuser)	1.9 VDC	LED Red
NKK Switches LB16SKG01-5D-JD	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear	2 VDC	Amber LED
NKK Switches LB16SKG01-6F-JB	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear	3.3 VDC	Green LED
NKK Switches LB16SKG01-1F-F	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Green	2.1 VDC	Green LED
NKK Switches LB16SKG01-5F24-JB	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear	24 V	Green LED
NKK Switches LB16SKG01-5C05-JF	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear	5 VDC	LED Red
NKK Switches LB16SKG01-6B-JB	0.4 VA	100000 Cycles	Illuminated Standard	SPDT	Panel Mount Snap-In	16.2 mm	16.2 mm	28 V	0.11 in	Quick Connect Solder	2.8 mm	On-On	No Marking	28 V	50 °C	-25 °C	200000 Cycles	Button Square	Clear	3.3 VDC	LED White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.94
		10	$ 22.65
		100	$ 19.73
LCSC	Piece	1	$ 9.36
Newark	Each	1	$ 43.94
		5	$ 39.19
		10	$ 37.85
		25	$ 35.76
		50	$ 33.29
		100	$ 29.49
		250	$ 26.44

Description

General part information

LB16SKG01 Series

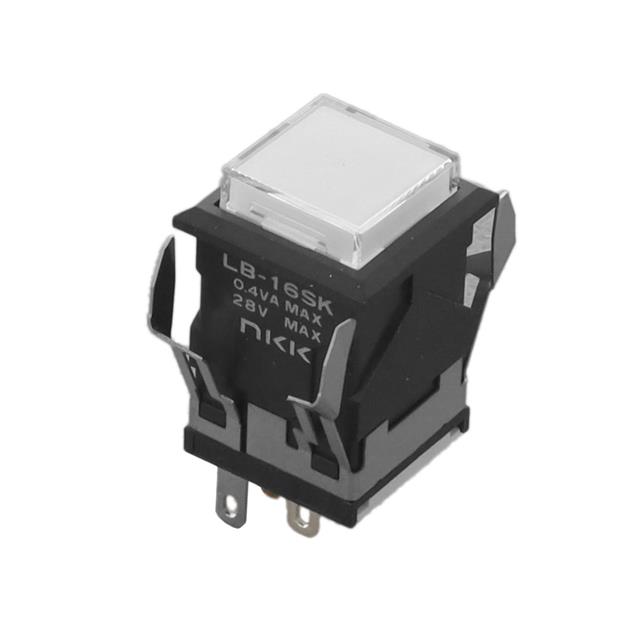

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
