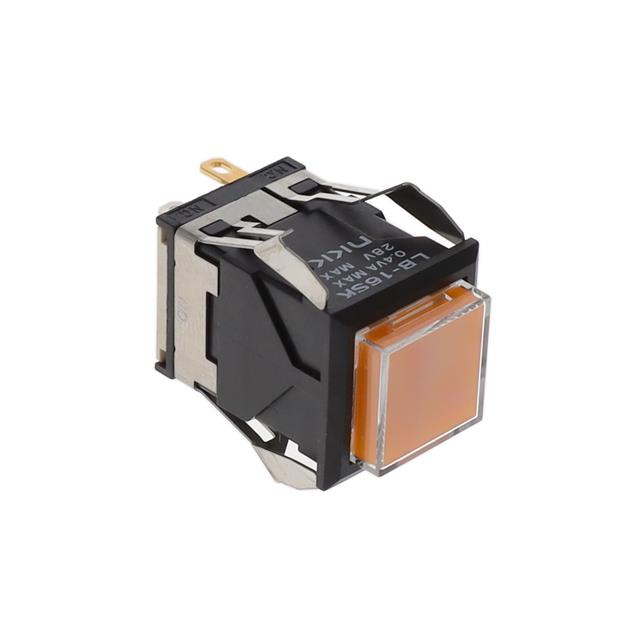

LB16SKG01-5D-JD
ActiveNKK Switches
PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-ON, SQUARE, TRANSPARENT
Deep-Dive with AI
Search across all available documentation for this part.
LB16SKG01-5D-JD
ActiveNKK Switches
PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-ON, SQUARE, TRANSPARENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LB16SKG01-5D-JD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 2 VDC |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 16.2 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
LB16SKG01 Series
| Part | Current Rating (Amps) | Electrical Life | Type | Circuit | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - AC | Termination Style | Termination Style | Termination Style | Switch Function | Actuator Marking | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Actuator Type | Color - Actuator/Cap | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 0.4 VA | 100000 Cycles | Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 70 °C | -25 °C | 200000 Cycles | Button Square | |||
NKK Switches | 0.4 VA | 100000 Cycles | Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 70 °C | -25 °C | 200000 Cycles | Button Square | Red | ||
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear (Red Filter/Diffuser) | 1.9 VDC | LED Red |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear | 2 VDC | Amber LED |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear | 3.3 VDC | Green LED |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Green | 2.1 VDC | Green LED |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear | 24 V | Green LED |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear | 5 VDC | LED Red |
NKK Switches | 0.4 VA | 100000 Cycles | Illuminated Standard | SPDT | Panel Mount Snap-In | 16.2 mm | 16.2 mm | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | On-On | No Marking | 28 V | 50 °C | -25 °C | 200000 Cycles | Button Square | Clear | 3.3 VDC | LED White |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB16SKG01 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
