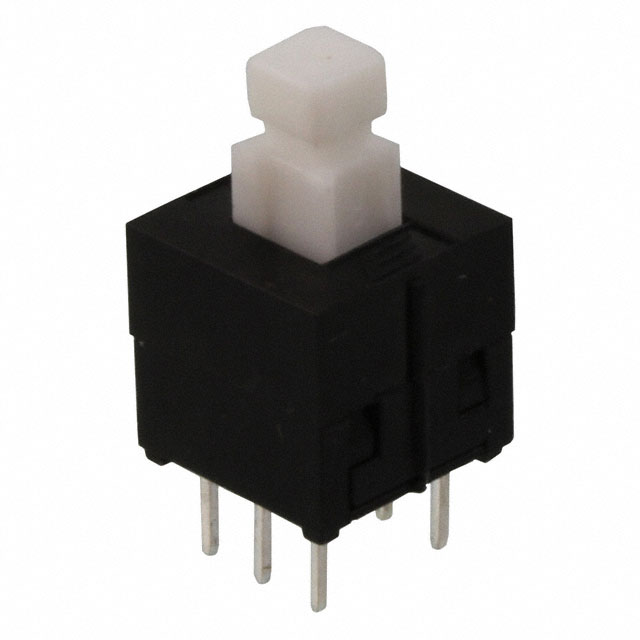

TL2201EEYA

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Actuator Type	Electrical Life	Mounting Type	Color - Actuator/Cap	Switch Function	Type	Circuit	Current Rating (Amps)	Actuator Marking	Termination Style
E-Switch TL2201EEZA1RBLK	30 V	Button Round	10000 Cycles	Through Hole	Black	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAYB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEXB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAZA	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAXA1DFBLK	30 V	Button Square	10000 Cycles	Through Hole	Black	On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEZB1CBLK	30 V	Rectangular Button	10000 Cycles	Through Hole	Black	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYA	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYA5JBLU	30 V	Rectangular Button	10000 Cycles	Through Hole	Blue	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEZA1CWHT	30 V	Rectangular Button	10000 Cycles	Through Hole	White	On-On	Standard	DPDT	100 mA	No Marking	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Through Hole

Technical documentation and resources

No documents available
