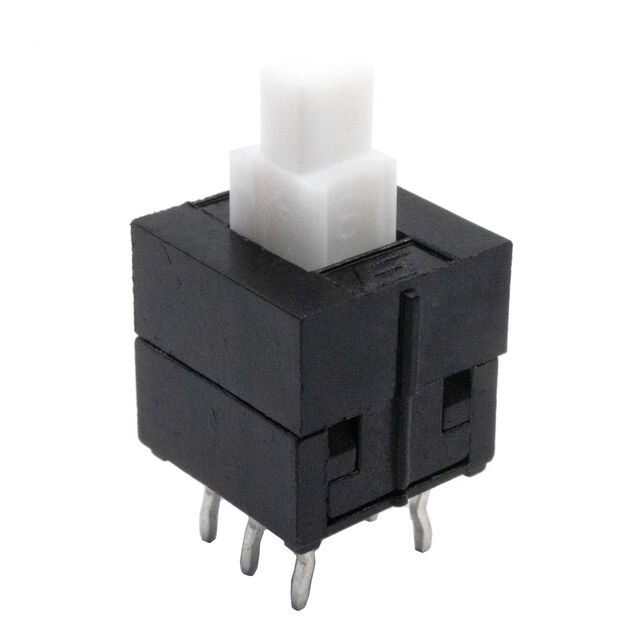

TL2201EEXB

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; ILLUMIN: NONE; THT

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; ILLUMIN: NONE; THT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Actuator Type	Electrical Life	Mounting Type	Color - Actuator/Cap	Switch Function	Type	Circuit	Current Rating (Amps)	Actuator Marking	Termination Style
E-Switch TL2201EEZA1RBLK	30 V	Button Round	10000 Cycles	Through Hole	Black	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAYB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEXB	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAZA	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201OAXA1DFBLK	30 V	Button Square	10000 Cycles	Through Hole	Black	On-Mom	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEZB1CBLK	30 V	Rectangular Button	10000 Cycles	Through Hole	Black	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYA	30 V	Plunger for Cap	10000 Cycles	Through Hole		On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEYA5JBLU	30 V	Rectangular Button	10000 Cycles	Through Hole	Blue	On-On	Standard	DPDT	100 mA	No Marking	PC Pin
E-Switch TL2201EEZA1CWHT	30 V	Rectangular Button	10000 Cycles	Through Hole	White	On-On	Standard	DPDT	100 mA	No Marking	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3500	$ 0.61

General part information

Pushbutton Switch DPDT Standard Through Hole

Technical documentation and resources

No documents available
