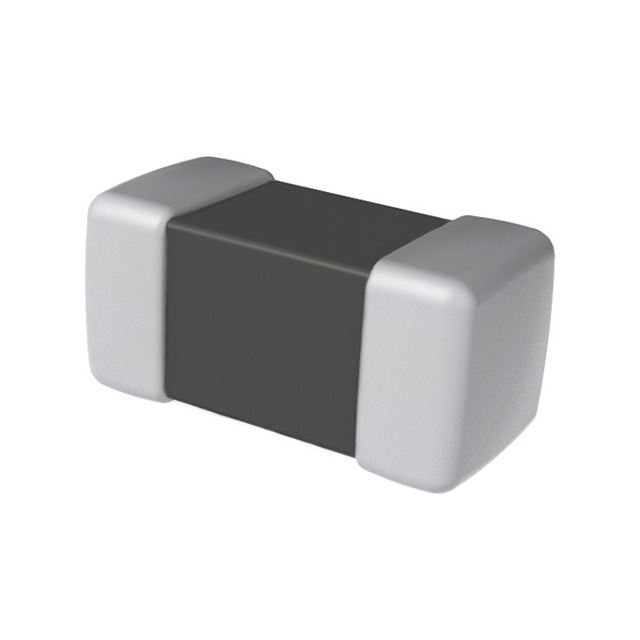

L0805C1R0MPWST

Obsolete

KEMET

FIXED IND 1UH 300MA 150 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMD Ferrite Inductors & Beads Catalog

L0805C1R0MPWST

Obsolete

KEMET

FIXED IND 1UH 300MA 150 MOHM SMD

Deep-Dive with AI

DocumentsSMD Ferrite Inductors & Beads Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L0805C1R0MPWST

Current Rating (Amps)	300 mA
DC Resistance (DCR)	150 mOhm
Frequency - Self Resonant	100 MHz
Height - Seated (Max) [Max]	1.45 mm
Height - Seated (Max) [Max]	0.057 in
Inductance	1 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	0805
Shielding	Unshielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Tolerance	20 %
Type	Wirewound, Drum Core

L0805C Series

Part	Shielding	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Package / Case	Inductance Frequency - Test	Inductance	Current Rating (Amps)	Tolerance	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) [Max]	Mounting Type	Q @ Freq	Supplier Device Package	Frequency - Self Resonant	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET L0805C4R7MDMIT	Shielded	Ferrite	85 °C	-40 °C	0.049 "	1.25 mm	Multilayer	0805	1 MHz	4.7 ÁH	700 mA	20 %	0805	2 mm	0.079 in	0.049 in	1.25 mm	280 mOhm	Surface Mount
KEMET L0805C1R8KSMST	Shielded	Ferrite	85 °C	-40 °C			Multilayer	0805	10 MHz	1.8 µH	50 mA	10 %	0805	2 mm	0.079 in	0.049 in	1.25 mm		Surface Mount	10 MHz 45	2125 Metric	55 MHz
KEMET L0805C470MDWIT	Unshielded	Ferrite	105 ░C	-40 °C			Drum Core Wirewound	0805	2.52 MHz	47 µH	120 mA	20 %	0805 (2012 Metric)	2.11 mm	0.083 in	0.059 "	1.5 mm		Surface Mount			11 MHz	5.8 Ohm	1.04 mm	0.041 in
KEMET L0805C1R0MDMIT	Shielded	Ferrite	85 °C	-40 °C	0.049 "	1.25 mm	Multilayer	0805	1 MHz	1 µH	1 A	20 %	0805	2 mm	0.079 in	0.049 in	1.25 mm		Surface Mount				140 mOhm
KEMET L0805C1R0MPWST	Unshielded	Ferrite	105 ░C	-40 °C			Drum Core Wirewound	0805	7.96 MHz	1 µH	300 mA	20 %	0805	2 mm	0.079 in	0.049 in	1.25 mm		Surface Mount			100 MHz	150 mOhm	0.057 in		1.45 mm
KEMET L0805C2R2MDWIT	Unshielded	Ferrite	105 ░C	-40 °C			Drum Core Wirewound	0805	7.96 MHz	2.2 µH	0.64 A	20 %	0805 (2012 Metric)	2 mm	0.079 in	0.049 in	1.25 mm		Surface Mount				330 mOhm	0.057 in		1.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.21
		10	$ 0.17
		25	$ 0.16
		50	$ 0.15
		100	$ 0.13
		250	$ 0.13
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	3000	$ 0.09
		6000	$ 0.08

Description

General part information

L0805C Series

1 µH Unshielded Drum Core, Wirewound Inductor 300 mA 150mOhm 0805 (2012 Metric)

Documents

Technical documentation and resources

SMD Ferrite Inductors & Beads Catalog

Datasheet
