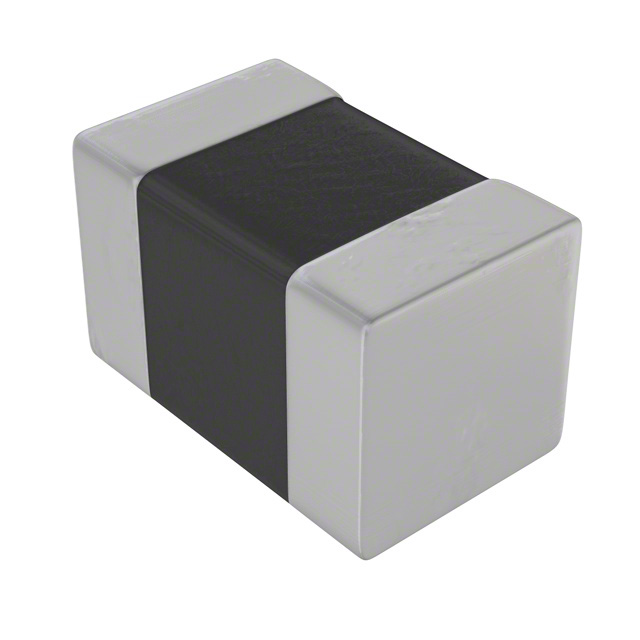

Specification	L0805C1R8KSMST

Current Rating	50 mA
DC Resistance (DCR) (Max)	600 mOhm
Frequency - Self Resonant	55 MHz
Height - Seated (Max)	0.041 in
Inductance	1.8 µH
Inductance Frequency - Test	10 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	0805 (2012 Metric)
Package Name	0805 (2125 Metric)
Q	45
Shielding	Shielded
Size / Dimension Length	0.079 in
Size / Dimension Width	0.049 in
Tolerance	10 %
Type	Multilayer

L0805C Series

Part	Tolerance	Shielding	DC Resistance (DCR) (Max)	Inductance	Height - Seated (Max)	Package / Case	Inductance Frequency - Test	Package Name	Material - Core	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Width	Type	Mounting Type	Current Rating	Q	Frequency - Self Resonant	Package Length	Package Width	DC Resistance (DCR)
KEMET L0805C1R5MDMIT	20 %	Shielded	200 mOhm	1.5 µH	0.049 in	0805 (2012 Metric)	1 MHz	0805	Ferrite	-40 °C	85 °C	0.079 in	0.049 in	Multilayer	Surface Mount	800 mA
KEMET L0805C4R7MDMIT	20 %	Shielded	280 mOhm	4.7 µH	0.049 in	0805 (2012 Metric)	1 MHz	0805	Ferrite	-40 °C	85 °C	0.079 in	0.049 in	Multilayer	Surface Mount	700 mA
KEMET L0805C1R8KSMST	10 %	Shielded	600 mOhm	1.8 µH	0.041 in	0805 (2012 Metric)	10 MHz	0805 (2125 Metric)	Ferrite	-40 °C	85 °C	0.079 in	0.049 in	Multilayer	Surface Mount	50 mA	45	55 MHz
KEMET L0805C470MDWIT	20 %	Unshielded		47 µH	0.041 in	0805 (2012 Metric)	2.52 MHz	0805 0805 (2012 Metric)	Ferrite	-40 °C	105 °C	0.083 in	0.059 in	Drum Core Wirewound	Surface Mount	120 mA		11 MHz	2 mm	1.2 mm	5.8 Ohm
KEMET L0805C1R0MDMIT	20 %	Shielded	140 mOhm	1 µH	0.049 in	0805 (2012 Metric)	1 MHz	0805	Ferrite	-40 °C	85 °C	0.079 in	0.049 in	Multilayer	Surface Mount	1 A
KEMET L0805C1R0MPWST	20 %	Unshielded		1 µH	0.057 in	0805 (2012 Metric)	7.96 MHz	0805	Ferrite	-40 °C	105 °C	0.079 in	0.049 in	Drum Core Wirewound	Surface Mount	0.3 A		100 MHz			150 mOhm
KEMET L0805C2R2MDWIT	20 %	Unshielded		2.2 µH	0.057 in	0805 (2012 Metric)	7.96 MHz	0805 0805 (2012 Metric)	Ferrite	-40 °C	105 °C	0.079 in	0.049 in	Drum Core Wirewound	Surface Mount	0.64 A		70 MHz	2 mm	1.2 mm	330 mOhm
KEMET L0805C3R3MDMIT	20 %	Shielded	240 mOhm	3.3 µH	0.049 in	0805 (2012 Metric)	1 MHz	0805	Ferrite	-40 °C	85 °C	0.079 in	0.049 in	Multilayer	Surface Mount	700 mA
