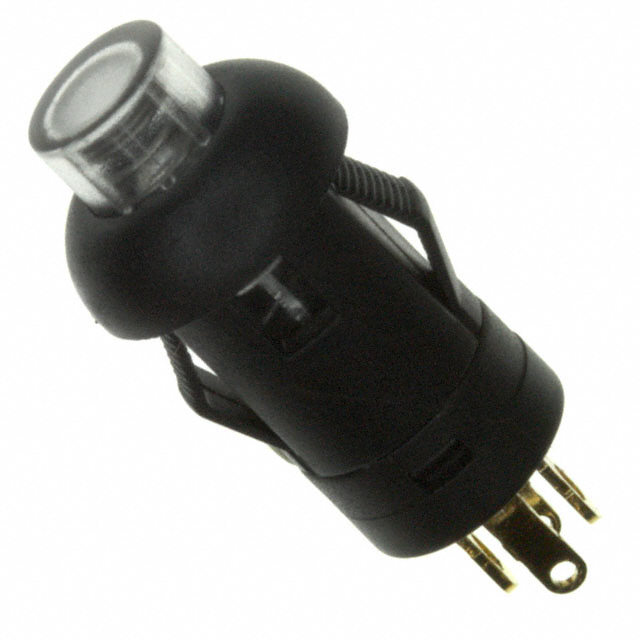

LP1OA1AB

Active

E-Switch

PB SWITCH, SPST, 0.1A, 30VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

E-Switch

PB SWITCH, SPST, 0.1A, 30VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LP1OA1AB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.7 VDC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Electrical Life	Voltage Rating - DC	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Type	Illumination Type, Color	Switch Function	Circuit	Illumination Voltage (Nominal)	Color - Actuator/Cap
E-Switch LP1OA1AB	50000 Cycles	30 V	No Marking	Button Round	85 °C	-40 °C	Panel Mount Snap-In	8 mm	100 mA	Solder Lug	Illuminated Standard	Blue LED	Off-Mom	SPST-NO	3.7 VDC	Clear
E-Switch LP1OA1AY	50000 Cycles	30 V	No Marking	Button Round	85 °C	-40 °C	Panel Mount Snap-In	8 mm	100 mA	Solder Lug	Illuminated Standard	LED Yellow	Off-Mom	SPST-NO	2.2 VDC	Clear
E-Switch LP1OA1AR	50000 Cycles	30 V	No Marking	Button Round	85 °C	-40 °C	Panel Mount Snap-In	8 mm	100 mA	Solder Lug	Illuminated Standard	LED Red	Off-Mom	SPST-NO	2.2 VDC	Clear
E-Switch LP1OA1AG	50000 Cycles	30 V	No Marking	Button Round	85 °C	-40 °C	Panel Mount Snap-In	8 mm	100 mA	Solder Lug	Illuminated Standard	Green LED	Off-Mom	SPST-NO	2.2 VDC	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
