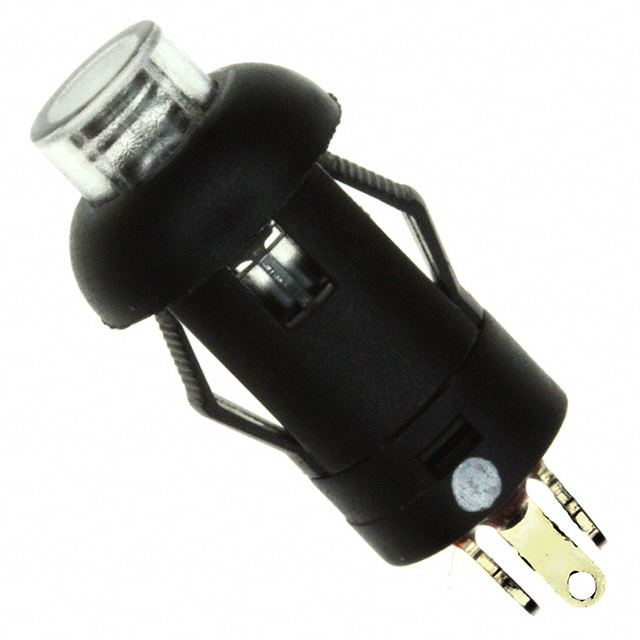

LP1OA1AR
ActiveE-Switch
SWITCH PUSH SPST-NO 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
LP1OA1AR
ActiveE-Switch
SWITCH PUSH SPST-NO 0.1A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP1OA1AR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 2.2 VDC |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.23 | |
| 10 | $ 2.90 | |||
| 25 | $ 2.74 | |||
| 84 | $ 2.48 | |||
| 252 | $ 2.38 | |||
| 504 | $ 2.19 | |||
| 1008 | $ 2.08 | |||
Description
General part information
LP1OA1 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
