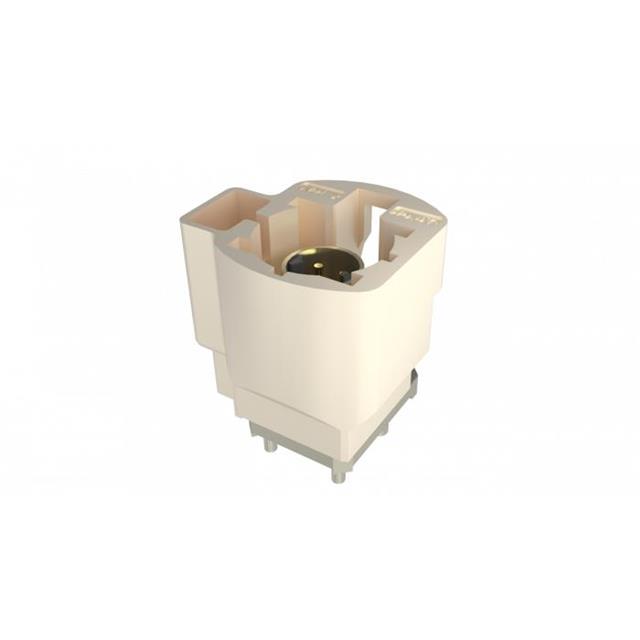

HSDNBSPPCB15A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 ST. T/H CODE B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSDNBSPPCB15A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 ST. T/H CODE B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSDNBSPPCB15A |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Fastening Type | Latch Lock |
| Features | Code B |
| Housing Color | White |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.80 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.69 | |||
| Tape & Reel (TR) | 150 | $ 0.97 | ||
| 300 | $ 0.88 | |||
| 450 | $ 0.81 | |||
Description
General part information
HSDNBSPP Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin Through Hole Solder
