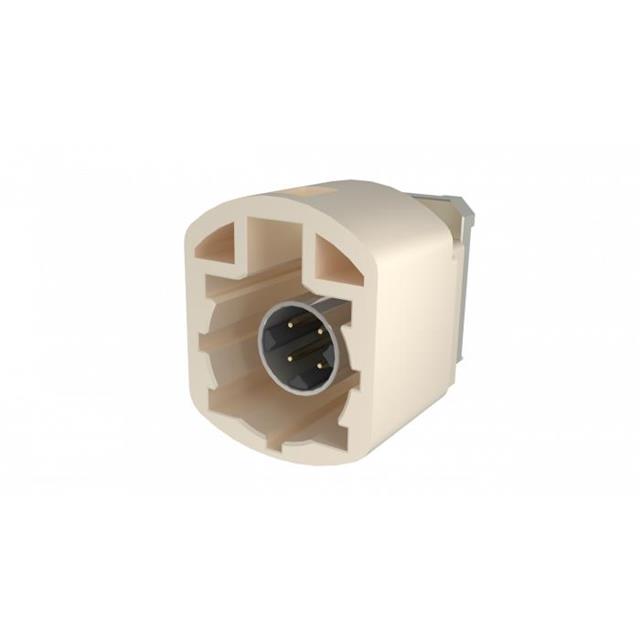

Specification	HSDNBSPPCB25A

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, Quadraxial, HSD®
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Glass Filled, Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code B
Housing Color	Cream
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

HSDNBSPP Series

Part	Center Contact Plating	Body Material	Dielectric Material	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Ports	Center Contact Material	Features	Contact Termination	Connector Type	Fastening Type	Shield Termination	Connector Style	Housing Color
Amphenol ICC (Commercial Products) HSDNBSPPCB14WBA	Gold	Zinc Alloy	Thermoplastic	Tin	-40 °C	105 °C	Through Hole	1	Copper Alloy	Code B	Solder	Male Pin Plug	Latch Lock	Solder	Fakra HSD® Quadraxial	Cream
Amphenol ICC (Commercial Products) HSDNBSPPCB25A	Gold	Zinc Alloy	Glass Filled Liquid Crystal Polymer (LCP)	Tin			Through Hole	1	Brass	Code B	Solder	Male Pin Plug	Latch Lock	Solder	Fakra HSD® Quadraxial	Cream
Amphenol ICC (Commercial Products) HSDNBSPPCB15A	Gold	Zinc Alloy	Thermoplastic	Tin			Through Hole	1	Copper Alloy	Code B	Solder	Male Pin Plug	Latch Lock	Solder	Fakra HSD® Quadraxial	White
