PHE845VF6220MR06L2

Active

KEMET

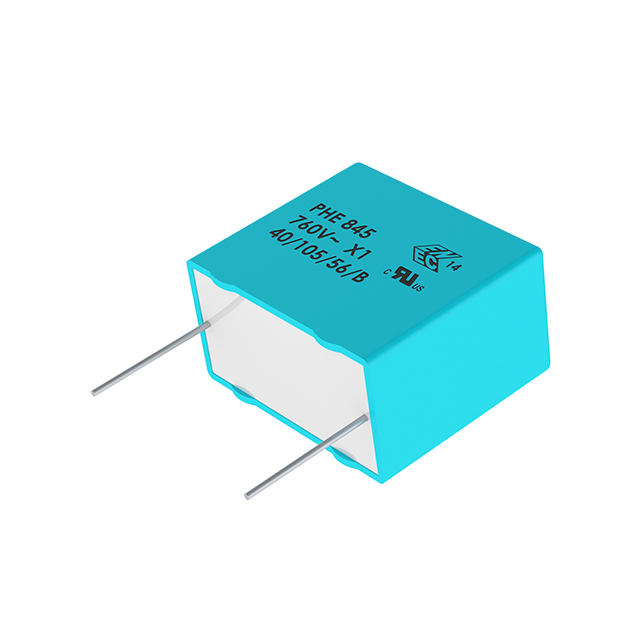

CAP FILM 0.22UF 20% 1.5KVDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3109_PHE845_X1_760.pdf F845FK224M760C Spec

PHE845VF6220MR06L2

Active

KEMET

CAP FILM 0.22UF 20% 1.5KVDC RAD

Deep-Dive with AI

DocumentsKEM_F3109_PHE845_X1_760.pdf F845FK224M760C Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE845VF6220MR06L2

Applications	EMI, RFI Suppression
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	23 mm
Height - Seated (Max) [Max]	0.906 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	31.5 mm
Size / Dimension [x]	1.24 in
Size / Dimension [y]	0.531 in
Size / Dimension [y]	13.5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	760 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

PHE845 Series

Part	Voltage Rating - DC	Voltage Rating - DC	Mounting Type	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - AC	Termination	Capacitance	Ratings	Applications	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE845VY6220MR06L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %	0.965 "	24.5 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.61 in	15.5 mm	26 mm	1.024 in	Metallized Polypropylene (PP)
KEMET PHE845VY6220MR30L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %	0.965 "	24.5 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.61 in	15.5 mm	26 mm	1.024 in	Metallized Polypropylene (PP)
KEMET PHE845VZ6470MR30L2	1.5 kVDC	1.5 kV	Through Hole	27.5 mm	1.083 in	-40 °C	105 ░C	20 %			760 V	PC Pins	0.47 µF	X1	EMI RFI Suppression	Radial	0.827 in	21 mm	31.5 mm	1.24 in	Metallized Polypropylene (PP)	1.181 "	30 mm
KEMET PHE845VF6220MR06L2	1.5 kVDC	1.5 kV	Through Hole	27.5 mm	1.083 in	-40 °C	105 ░C	20 %	0.906 in	23 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.531 in	13.5 mm	31.5 mm	1.24 in	Metallized Polypropylene (PP)
KEMET PHE845VW7100MR30L2	1.5 kVDC	1.5 kV	Through Hole	37.5 mm	1.476 in	-40 °C	105 ░C	20 %			760 V	PC Pins	1 µF	X1	EMI RFI Suppression	Radial	0.827 in	21 mm	41 mm	1.614 "	Metallized Polypropylene (PP)	1.496 in	38 mm
KEMET PHE845VD5470MR30L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %			760 V	PC Pins		X1	EMI RFI Suppression	Radial	0.354 in	9 mm	26 mm	1.024 in	Metallized Polypropylene (PP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.67
		10	$ 2.30
		50	$ 2.09
		171	$ 1.88
Newark	Each	500	$ 2.45
		1000	$ 2.16
		2500	$ 2.01

Description

General part information

PHE845 Series

0.22 µF Film Capacitor 760V 1500V (1.5kV) Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

KEM_F3109_PHE845_X1_760.pdf

Datasheet

F845FK224M760C Spec

Datasheet
