PHE845VZ6470MR30L2

Active

KEMET

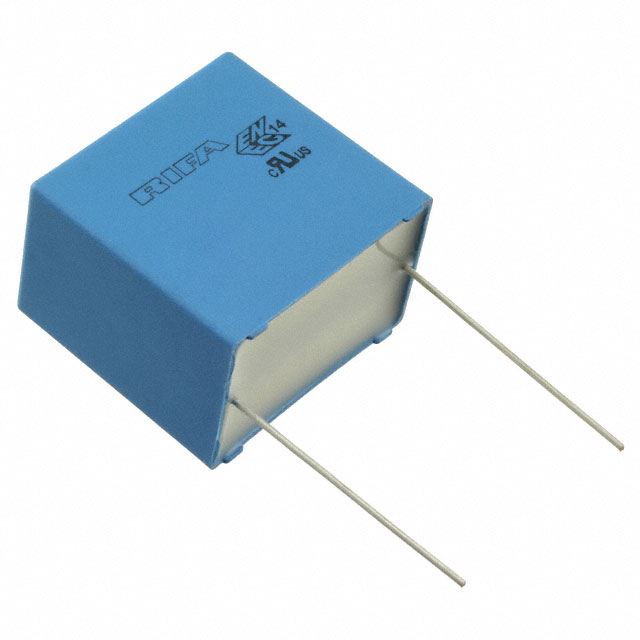

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 20%, X1, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPHE845VZ6470MR30L2 Spec KEM_F3109_PHE845_X1_760.pdf +4

PHE845VZ6470MR30L2

Active

KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.47 ΜF, ± 20%, X1, THROUGH HOLE

Deep-Dive with AI

DocumentsPHE845VZ6470MR30L2 Spec KEM_F3109_PHE845_X1_760.pdf +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE845VZ6470MR30L2

Applications	EMI, RFI Suppression
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	1.181 "
Height - Seated (Max) [Max] [z]	30 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	31.5 mm
Size / Dimension [x]	1.24 in
Size / Dimension [y]	21 mm
Size / Dimension [y]	0.827 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	760 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

PHE845 Series

Part	Voltage Rating - DC	Voltage Rating - DC	Mounting Type	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - AC	Termination	Capacitance	Ratings	Applications	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE845VY6220MR06L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %	0.965 "	24.5 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.61 in	15.5 mm	26 mm	1.024 in	Metallized Polypropylene (PP)
KEMET PHE845VY6220MR30L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %	0.965 "	24.5 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.61 in	15.5 mm	26 mm	1.024 in	Metallized Polypropylene (PP)
KEMET PHE845VZ6470MR30L2	1.5 kVDC	1.5 kV	Through Hole	27.5 mm	1.083 in	-40 °C	105 ░C	20 %			760 V	PC Pins	0.47 µF	X1	EMI RFI Suppression	Radial	0.827 in	21 mm	31.5 mm	1.24 in	Metallized Polypropylene (PP)	1.181 "	30 mm
KEMET PHE845VF6220MR06L2	1.5 kVDC	1.5 kV	Through Hole	27.5 mm	1.083 in	-40 °C	105 ░C	20 %	0.906 in	23 mm	760 V	PC Pins	0.22 µF	X1	EMI RFI Suppression	Radial	0.531 in	13.5 mm	31.5 mm	1.24 in	Metallized Polypropylene (PP)
KEMET PHE845VW7100MR30L2	1.5 kVDC	1.5 kV	Through Hole	37.5 mm	1.476 in	-40 °C	105 ░C	20 %			760 V	PC Pins	1 µF	X1	EMI RFI Suppression	Radial	0.827 in	21 mm	41 mm	1.614 "	Metallized Polypropylene (PP)	1.496 in	38 mm
KEMET PHE845VD5470MR30L2	1.5 kVDC	1.5 kV	Through Hole	22.5 mm	0.886 in	-40 °C	105 ░C	20 %			760 V	PC Pins		X1	EMI RFI Suppression	Radial	0.354 in	9 mm	26 mm	1.024 in	Metallized Polypropylene (PP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.26
		10	$ 5.39
		40	$ 4.89
		108	$ 4.03
		540	$ 3.51
		972	$ 3.26
		2484	$ 3.19
Newark	Each	1	$ 6.50
		10	$ 5.60
		25	$ 5.34
		50	$ 5.08
		100	$ 4.49
		500	$ 3.90
		1000	$ 3.64

Description

General part information

PHE845 Series

The PHE845 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94V–0. For use as a electromagnetic interference (EMI) suppression filter in across-the-line applications requiring X1 safety classification. Suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.
