GSID150A120S5C1

Obsolete

SemiQ

IGBT MOD 1200V 285A 1087W

Search across all available documentation for this part.

Obsolete

SemiQ

IGBT MOD 1200V 285A 1087W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

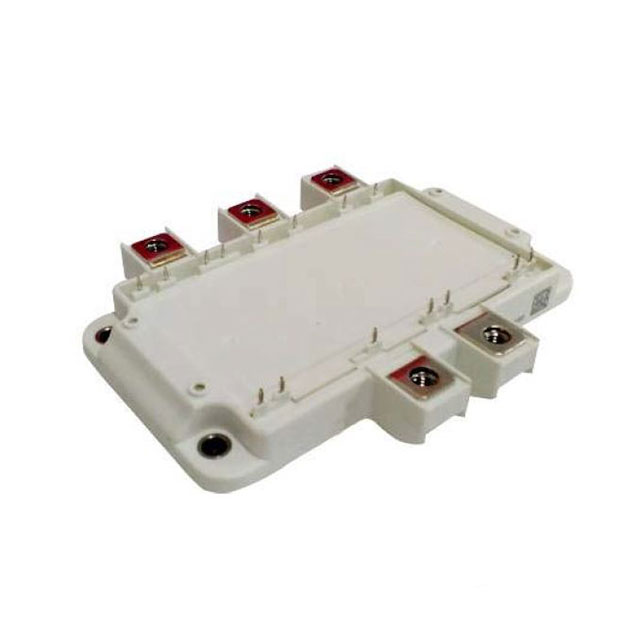

IGBT Module Three Phase Inverter 1200 V 285 A 1087 W Chassis Mount Module

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	GSID150A120S5C1	GSID150 Series

Configuration	Three Phase Inverter	2 Independent, Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	285 A	285 A
Current - Collector Cutoff (Max) [Max]	1 mA	1 mA
Input	Standard	Standard
Input Capacitance (Cies) @ Vce	21.2 nF	14 - 21.2 nF
Mounting Type	Chassis Mount	Chassis Mount
NTC Thermistor	True	False, True
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	D-3 Module, Module
Power - Max [Max]	1087 W	940 - 1087 W
Supplier Device Package	Module	D3, Module
Vce(on) (Max) @ Vge, Ic	2.1 V	2 - 2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V	1200 V

IGBT MODULE 1200V 300A 940W D3

Part	Mounting Type	Input	Package / Case	Power - Max [Max]	NTC Thermistor	Input Capacitance (Cies) @ Vce	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]
SemiQ GSID150A120S3B1	Chassis Mount	Standard	D-3 Module	940 W		14 nF	2 Independent	1200 V	D3	1 mA	2 V
SemiQ GSID150A120S5C1	Chassis Mount	Standard	Module	1087 W		21.2 nF	Three Phase Inverter	1200 V	Module	1 mA	2.1 V	150 °C	-40 °C	285 A
